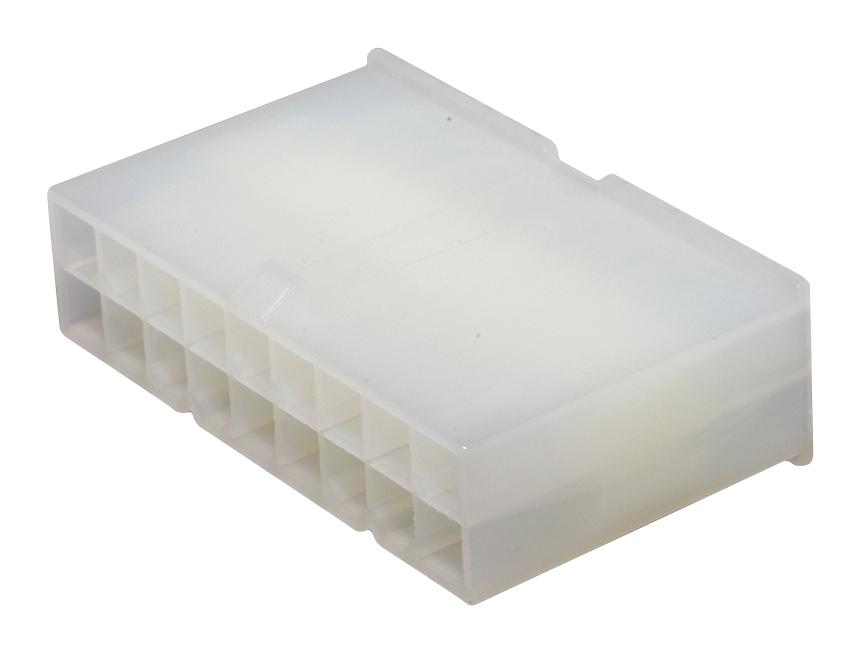

MOLEX 39013183 Mini-Fit Jr. Plug Housing
The MOLEX 39-01-3183 Mini-Fit Jr. Plug Housing is a versatile connector solution for power applications in various industries. Designed with 18 circuits and constructed from durable nylon resin, this housing offers reliable performance and ease of use. It is rated for a maximum current of 13A per circuit when properly mated and terminated. The connector's natural color and UL 94V-2 flammability rating make it suitable for a wide range of applications, including wire-to-board and wire-to-wire connections. It is compatible with Mini-Fit male crimp terminals and receptacles, ensuring a secure and efficient connection. The housing is designed to be stackable and polarized, simplifying assembly and reducing errors.
MOLEX 39013183 Mini-Fit Jr. Plug Housing Specifications:
- Circuits (maximum): 18
- Color - Resin: Natural
- Flammability: 94V-2
- Gender: Plug
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 13.0A
- Material Info: Engineering Number: 5559-18P1
