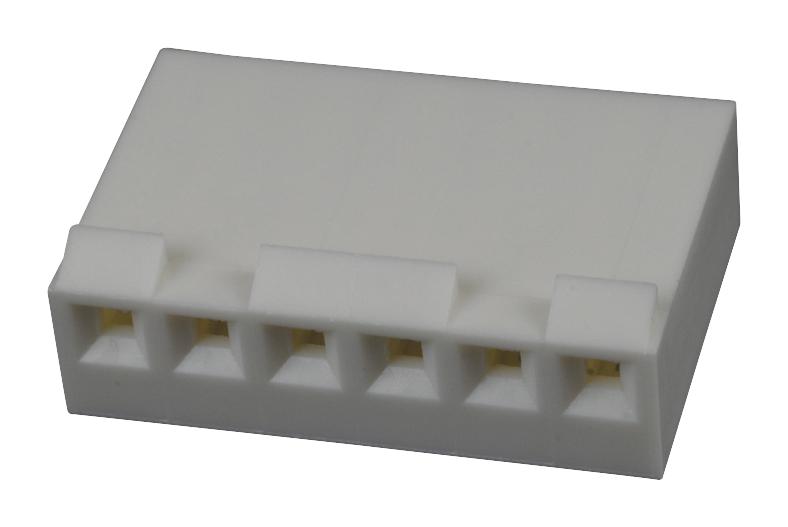

MOLEX 09508100 Multi-Circuit Connector
This connector is designed for reliable electrical connections in circuit assemblies, featuring a molded natural polyester housing with UL94V-0 rating. It accommodates 18-24 AWG wires with a maximum insulation diameter of 2.79/0.110 inches, ensuring secure mating with headers and round or square pins. Its standardized terminal acceptance, including various optional ramps and polarizing ribs, enhances versatility. The component conforming to Class B cosmetic requirements ensures durability and precise fitment for multi-circuit applications in electronic devices and industrial equipment. Built for quick installation and efficient performance, this connector is essential in manufacturing and control systems, offering robust electrical contact and excellent insulation properties.
MOLEX 09508100 Multi-Circuit Connector Specifications:
- Material: N - Glass filled polyester, UL94V-0, molded natural
- Finish: See terminal drawings
- Dimensions: 12.75 mm (B) ±0.08, 8.79 mm (A) +0.05
- Number of Circuits: 7-14 circuit configurations
- Wire Range: 18-24 AWG, max insulation diameter 2.79/0.110 inches for 18-24 AWG, 1.65/0.065 inches for 22-26 AWG, 3.12/0.123 inches for 18-20 AWG
- Housing accepts standard terminal numbers: 18-24 AWG, 22-26 AWG, 18-20 AWG with specified insulation diameters
- Notable features: optional ramps, polarizing ribs, locking windows, molded voids, conforming to Class B cosmetic specs
- Certifications: UL Listed, CSA Certified
- Packaging: Multiple options with voids and different circuit configurations
- Design: Includes grooves on both sides; geometry applies for 7-14 circuits with and without window options
- Temperature Rating: Not specified, suitable for typical electronic environments
Buy the Molex Series Connector: High-Circuit Count Female Housing: 09508100
Purchase the Molex multi-circuit connector online today to ensure quick, reliable, and durable electrical connections for your electronic, industrial, or control system needs. Designed for 18-24 AWG wires with a molded polyester housing, this connector offers versatile configurations including optional ramps and polarizing features. It meets industry standards like UL94V-0 and conforming to Class B cosmetic specs, providing durability and precise fitment. With multiple circuit options and secure termination features, this connector is ideal for manufacturing, automation, and OEM applications. Place your order now for fast delivery and confidence in performance!
Buy Molex 09508100 now and experience unmatched reliability and high-performance connectivity for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 09508100?
You can click on the BUY or RFQ button to purchase 09508100 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 09508100?
You can download the 09508100 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 09508100?
MOLEX
