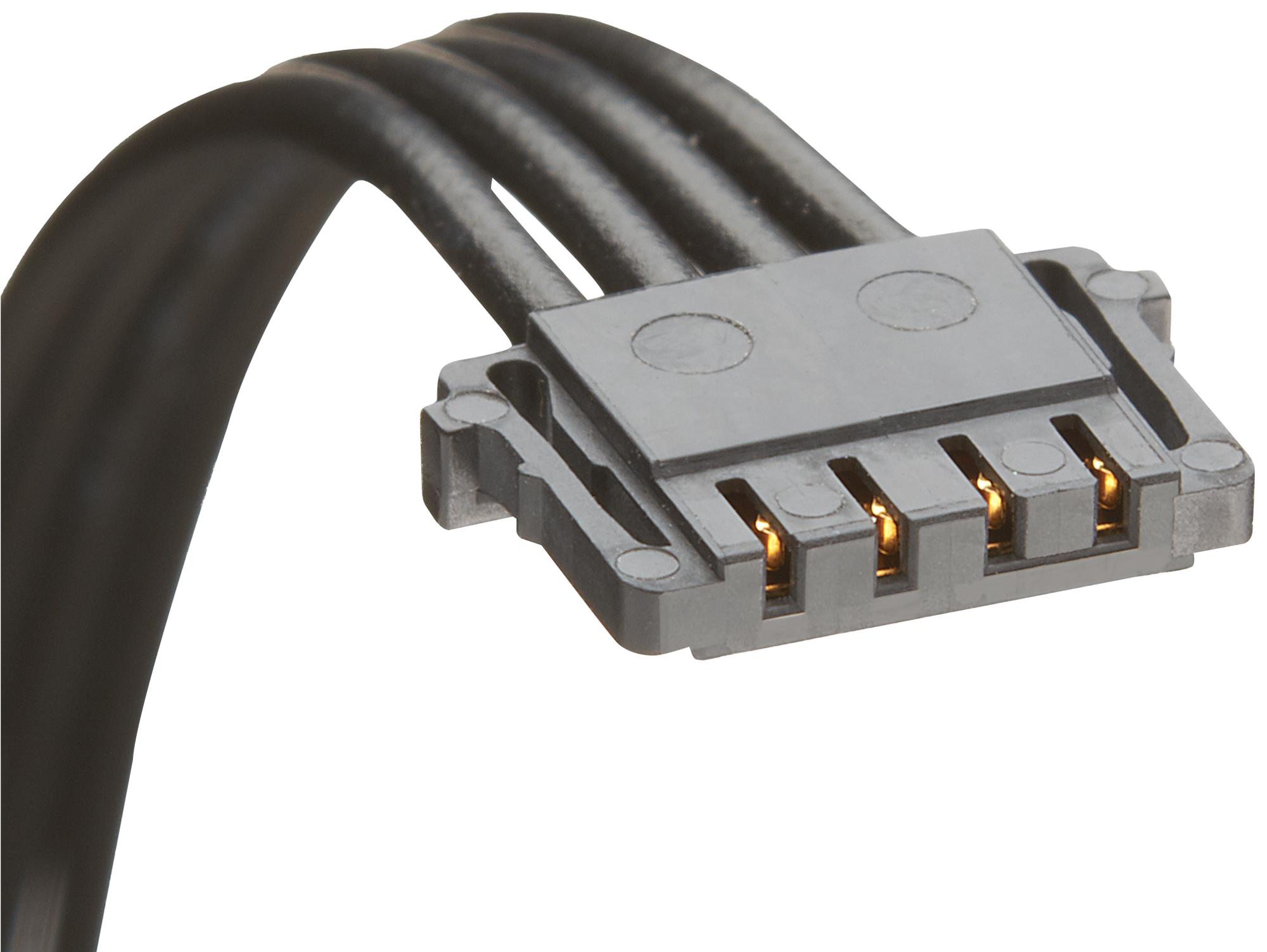

MOLEX 151320401 Pico-Lock Cable Assembly
The Pico-Lock-to-Pico-Lock off-the-shelf cable assembly features a 1.50mm pitch, single row, 100mm length, and 4 circuits, ideal for high-reliability electronic connections. Made from high-temperature thermoplastic with a copper alloy metal, it includes gold and tin plating for corrosion resistance. Suitable for applications requiring up to 150V, it features crimp or compression termination interfaces, and is compliant with RoHS standards, ensuring eco-friendly manufacturing. Designed for quick connector-to-connector assembly, this flexible, durable cable assembly is perfect for compact electronic systems and industrial equipment.
MOLEX 151320401 Pico-Lock Cable Assembly Specifications:
- Pitch: 1.50mm
- Cable Length: 100.00mm
- Number of Circuits: 4
- Color: Black
- Gender: Female-Female
- Material: Copper Alloy
- Plating Mating: Gold
- Plating Termination: Tin
- Resin: High Temperature Thermoplastic
- Wire Insulation Diameter: 1.10mm
- Wire Size AWG: 24
- Voltage - Maximum: 150V
- Reference Drawing Number: 151320400-000
- RoHS: Compliant
- Halogen-Free: No
- Status: Active
Buy the Buy Molex Pico-Lock-to-Pico-Lock Part Number 151320401 Online
Order the Molex Pico-Lock cable assembly online today for secure, high-quality connections in electronic and industrial systems. With a 1.50mm pitch, four circuits, and a length of 100mm, this durable, RoHS-compliant connector provides reliable performance. Made from high-temp thermoplastic and plated with gold and tin for corrosion resistance, it features easy crimp or compression termination. Perfect for compact designs, it ensures seamless integration with Pico-Lock series connectors, enhancing your system’s reliability and efficiency.
Get Molex Pico-Lock 151320401 today—built for reliable connector-to-connector assembly and durability in electronic applications.
Frequently Asked Questions
Where can I buy MOLEX 151320401?
You can click on the BUY or RFQ button to purchase 151320401 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151320401?
You can download the 151320401 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151320401?
MOLEX
