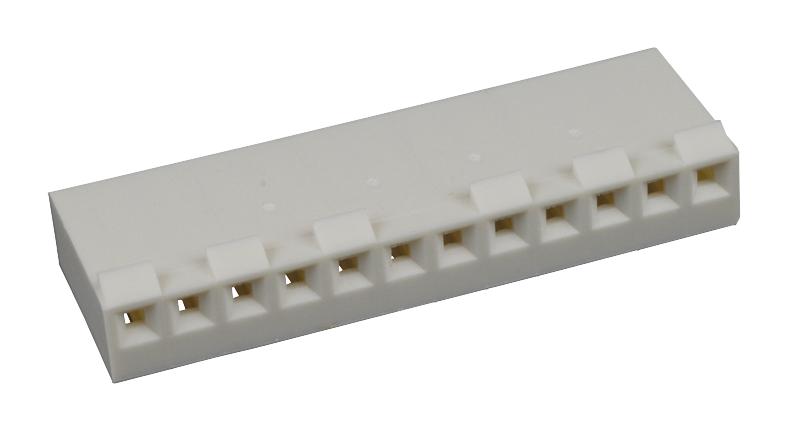

MOLEX 09508131 Industrial Connector
This high-reliability connector features a molded natural glass-filled polyester housing rated UL94V-0, designed for versatile industrial applications. It accommodates 2-14 circuit configurations, with compatibility for standard and polarized headers, round and square pins, and optional ramps and polarizing ribs. Key dimensions include a length of approximately 12.75 mm for certain variants, with insulation diameters up to 0.110 inches. Finished with precise terminal housing and conforming to Class B cosmetic standards, it ensures secure connections in complex electronic systems for manufacturing and industrial automation.
MOLEX 09508131 Industrial Connector Specifications:
- Material: N-Glass Filled Polyester, UL94V-0, molded natural
- Dimensions: Length varies with option, approximately 12.75 mm for certain variants, height 11.89 mm, width 5.8 mm
- Finish: See terminal drawings, precise to 0.005 inches
- Insulation Diameter: Max 0.110 inches for 18-24 AWG, Max 0.065 inches for 22-26 AWG, Max 0.123 inches for 18-20 AWG
- Wire Range: 18-24 AWG, 22-26 AWG, 18-20 AWG options
- Voltage Rating: Not specified, suitable for low voltage electronic connections
- Certifications: UL Listed, CSA Certified
- Design Features: Durable housing, optional ramps, polarizing ribs, and groove features on both sides
- Compatibilities: Accepts standard terminal numbers, round and square pins, with optional voids and coding
- Environmental Resistance: Conforms to Class B requirements of cosmetic standards, suitable for industrial environments
- Connection Geometry: Fits with headers and mating connectors, designed for 2-14 circuit configurations
- Additional: Proprietary design by Molex with proprietary void and option codes, with proprietary terminal housing and locking provisions.
Buy the Molex 09508131 – Reliable Connector for Industrial Applications
Discover the versatility and reliability of the Molex 09508131 industrial connector for your electronic and manufacturing projects. Crafted from durable glass-filled polyester and featuring a precise molded housing, this connector accommodates 2-14 circuits, supporting various header and pin configurations. Its design includes optional ramps, polarizing ribs, and grooves for secure mating, making it ideal for complex industrial automation applications. Order online today to secure a high-quality component that ensures safe, consistent, and efficient electrical connections in demanding industrial environments.
Order your Molex 09508131 high-performance connector today and ensure dependable, secure electrical connections in your industrial and manufacturing projects.
Frequently Asked Questions
Where can I buy MOLEX 09508131?
You can click on the BUY or RFQ button to purchase 09508131 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 09508131?
You can download the 09508131 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 09508131?
MOLEX
