MOLEX 10081022 PCB Header Connector
The KK 508 connector system is a versatile PCB header designed for board-to-board and wire-to-board applications. Featuring vertical orientation, round pins, and tin plating, it supports up to 2 circuits with a pin length of 23.80mm. Suitable for power and data transfer, it has a maximum current rating of 7.0A per contact and a maximum voltage of 250V. This durable connector is RoHS compliant, halogen-free, and supports multiple mating cycles, making it ideal for various electronic assemblies and industrial equipment.
MOLEX 10081022 PCB Header Connector Specifications:
- Number of Circuits: 2
- Color - Resin: Natural
- Durability (mating cycles max): See Product Specification
- First Mate / Last Break: No
- Flammability: Not specified
- Glow-Wire Capable: No
- Guide to Mating Part: None
- Keying to Mating Part: None
- Lock to Mating Part: None
- Material - Metal: Not specified
- Material - Plating Mating: Tin (Sn)
- Material - Plating Termination: Tin (Sn)
- Material - Resin: Natural
- Net Weight: Not specified
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.94mm
- PCB Locator: No
- PCB Retention: No
- PCB Thickness - Recommended: Not specified
- Packaging Type: Bag
- Pitch - Mating Interface: 5.08mm
- Pitch - Termination Interface: 5.08mm
- Plating min - Mating: 5.080um
- Plating min - Termination: 5.080um
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
- Surface Mount Compatible (SMC): No
- Temperature Range - Operating: Not specified
- Termination Interface: Style: Through Hole
- Electrical Current - Max per Contact: 7.0A
- Voltage - Max: 250V
- Process Temperature max. C.: 235°C
- RoHS Compliance: Yes, environmentally friendly and halogen-free

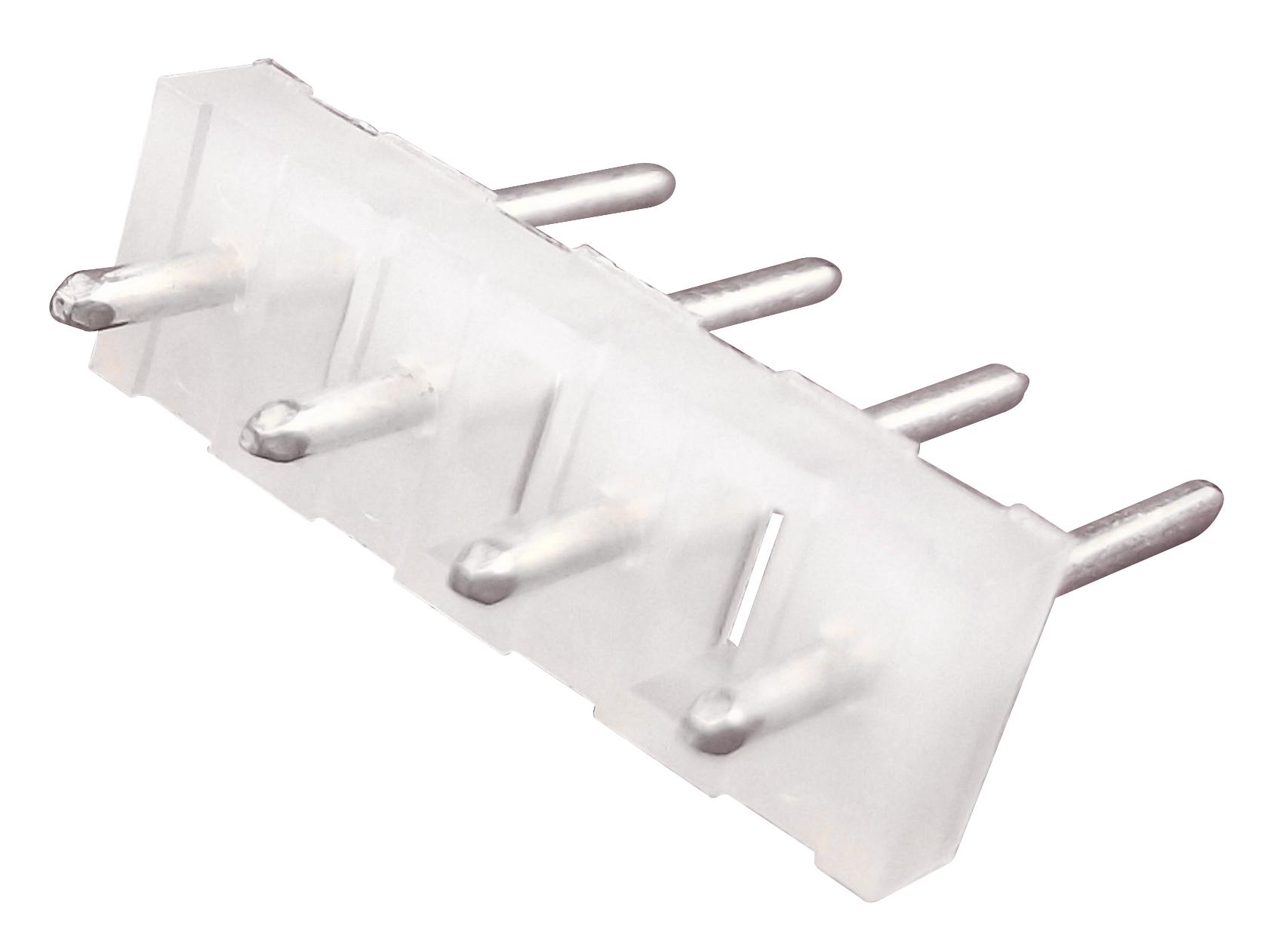

Buy the Buy Molex KK 508 Connector System Part Number 0010081022 Online
Purchase the Molex KK 508 connector system online for your electronic applications. Featuring a vertical orientation, round pins, tin plating, and a 23.80mm pin length, it offers high durability, supporting up to 7A and 250V. This environmentally friendly, RoHS-compliant connector ensures secure connections during board-to-board and wire-to-board assemblies. Its high-quality materials and design support multiple mating cycles, making it ideal for industrial equipment, consumer electronics, and automation systems. Order now for fast delivery and technical support.
Buy Molex KK 508 connector system with 2 circuits and 23.80mm pin length now and experience reliable power and data connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 10081022?
You can click on the BUY or RFQ button to purchase 10081022 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 10081022?
You can download the 10081022 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 10081022?
MOLEX
