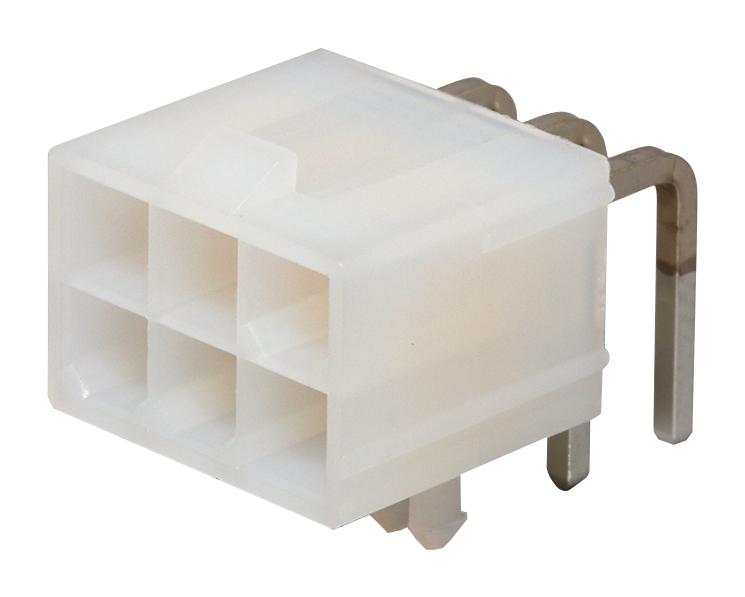

MOLEX 26013116 power connector
The Mini-Fit Jr. Power Connectors are compact, dual-row, right-angle headers designed for reliable wire-to-board power connections. Crafted from PA Polyamide Nylon 6/6 with 94V-2 flammability rating and gold-plated contacts, these connectors support currents up to 13A per circuit at a maximum voltage of 600V. Featuring a 4.20mm pitch, shrouded fully for polarization, and suitable for operating temperatures from -40°C to +105°C, they ensure durability for industrial and electronic power applications. Compatible with through-hole termination and stackable, they offer robust, secure connections with multiple mating cycles.
MOLEX 26013116 power connector Specifications:
- Material: PA Polyamide Nylon 6/6
- Flammability: UL 94V-2
- Contact Plating: Gold
- Number of Circuits: 6
- Current per Circuit: 13A
- Voltage Rating: 600V
- Pitch: 4.20mm
- Operating Temperature Range: -40°C to +105°C
- Termination Style: Through Hole
- Resin Color: Natural
- Durability (mating cycles): Not specified but designed for high number of cycles
- Color - Resin: Natural
- Net Weight: 2.164g per connector
Buy the Molex Series Mini-Fit Jr Power Connectors: 26013116
Order the Molex Mini-Fit Jr. power connector 26013116 online today. Featuring a 4.20mm pitch, gold-plated contacts, and a robust nylon body, this connector ensures reliable power delivery for electronic and industrial projects. Designed for quick and secure through-hole mounting, it supports currents up to 13A per circuit at voltages up to 600V and operates in temperatures from -40°C to +105°C. Its shrouded, polarized design makes it ideal for durable, safe, and high-performance power connections in various demanding environments.
Get Molex 26013116 today—built for robust power connections in electronic and industrial applications with high current capacity and reliable design.
Frequently Asked Questions
Where can I buy MOLEX 26013116?
You can click on the BUY or RFQ button to purchase 26013116 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 26013116?
You can download the 26013116 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 26013116?
MOLEX
