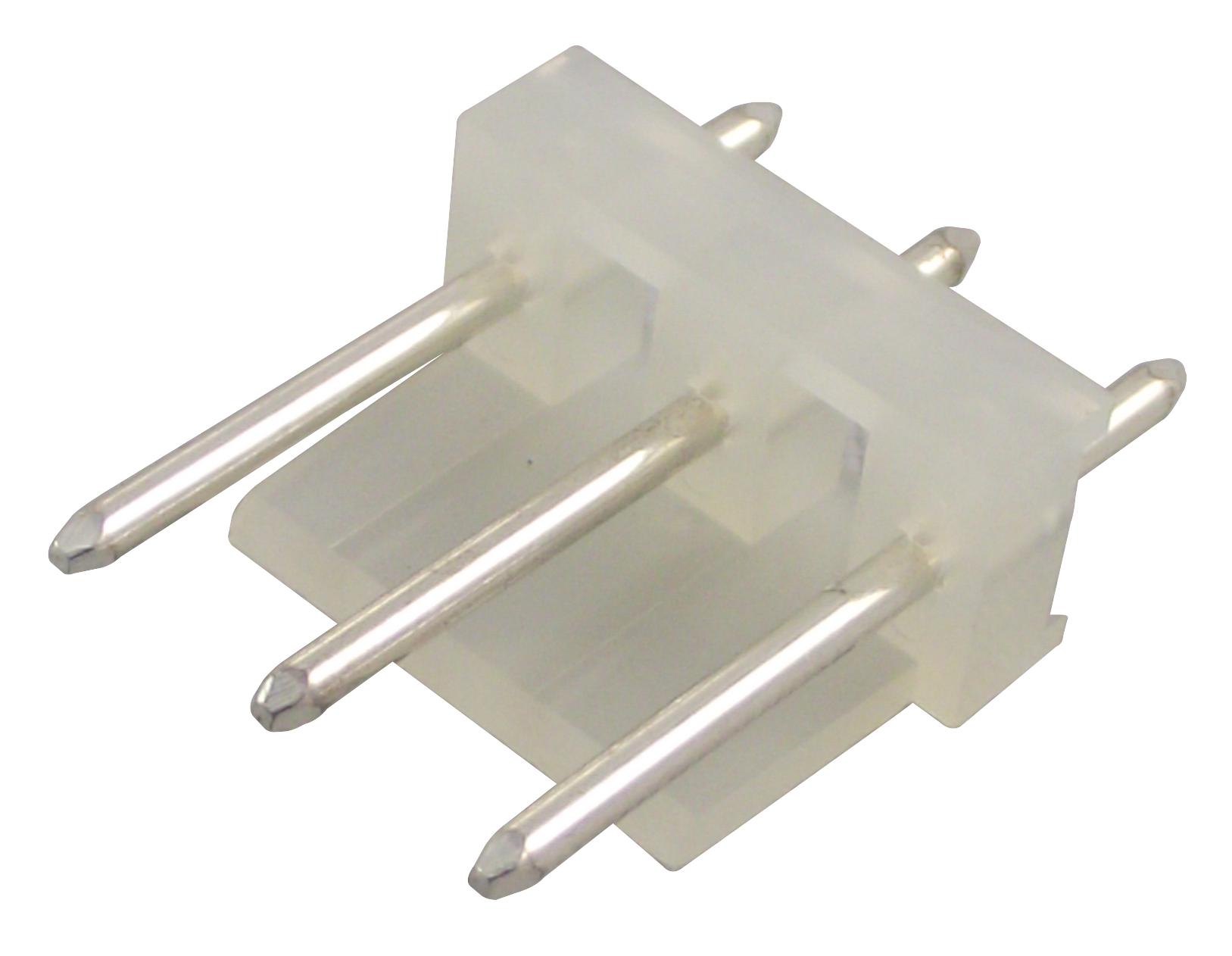

MOLEX 10085031 PCB Header
The KK 508 Connector system features a vertical header with polarizing backwall designed for power and wire-to-board applications. This 3-circuit connector with tin plating offers reliable electrical performance with a maximum current of 7.0A per contact and a voltage rating of 250V. Made of durable brass with nylon resin housing, it supports up to 25 mating cycles and has a PC tail length of 445mm. The connector is RoHS compliant, halogen-free, and suitable for operating temperatures from -55°C to +105°C, ensuring high-quality connections in various electronics projects.
MOLEX 10085031 PCB Header Specifications:
- Product Family: PCB Headers
- Series: KK 508
- Application: Power, Wire-to-Board
- Number of Circuits: 3
- Circuits (Maximum): 3
- Color - Resin: Natural
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 0.784 g
- Orientation: Vertical
- PC Tail Length: 445mm
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
- Pitch - Mating Interface: 5.08mm
- Pitch - Termination Interface: 5.08mm
- Plating Min - Mating: 5.080um
- Plating Min - Termination: 5.080um
- Voltage - Maximum: 250V
- Current - Maximum per Contact: 7.0A
- Temperature Range - Operating: -55°C to +105°C
- Flammability: 94V-2
- RoHS: Compliant
- Halogen-Free: Yes
- Maximum Operating Temperature: 235°C
- Process Temperature Max.: 235°C
- Durability (Mating Cycles Max): 25
Buy the Buy Molex PCB Headers Part Number 0010085031 Online
Enhance your electronic assemblies with the Molex PCB Header featuring a vertical design, polarizing backwall, and 3 circuits for power applications. Made from durable brass with tin plating, it supports up to 25 mating cycles and operates reliably from -55°C to +105°C. Its compact 5.08mm pitch and maximum current of 7A per contact make it suitable for diverse projects, ensuring high performance and compliance with RoHS standards. Purchase online today for quick and secure delivery.
Order your Molex Series KK 508 0010085031 connector today and ensure reliable, high-current connections in your power and wiring projects.
