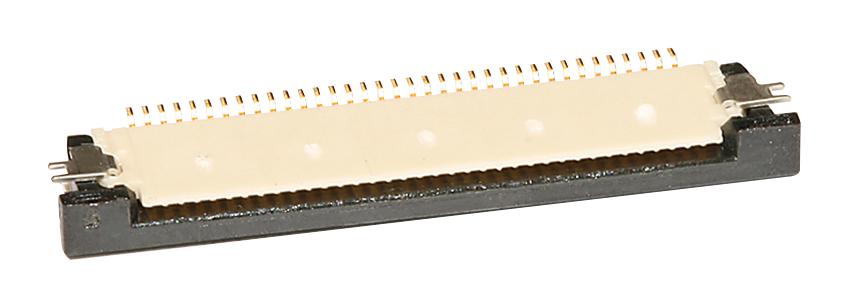

MOLEX 541323662 FFC FPC Connector
The Molex Easy-On FFC/FPC connector features a 0.50mm pitch and is designed for surface mount applications. It is a right-angle, bottom contact connector with 36 circuits, gold-plated contacts, and a height of 2.00mm. This connector offers reliable electrical performance with a maximum current of 0.5A and voltage up to 50V. Constructed from high-temperature thermoplastic and phosphor bronze contacts, it is RoHS and UL certified, providing durability for up to 20 mating cycles. Ideal for compact electronic devices and flexible printed circuit board connections.
MOLEX 541323662 FFC FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Number of Circuits (Loaded): 36
- Contact Material: Phosphor Bronze
- Contact Plating: Gold
- Material - Resin: High Temperature Thermoplastic
- Flammability: 94V-0
- Maximum Current per Contact: 0.5A
- Maximum Voltage: 50V
- Operating Temperature Range: -20°C to +85°C
- Color - Resin: Black, Natural
- Mated Height: 2.00mm
- Durability (Mating Cycles Max): 20
- Surface Mount Compatibility: Yes
- Polarized to PCB: No
- UL Certification: Yes
- RoHS Compliance: Yes
- Halogen-Free Status: Not Low-Halogen
Buy the Molex 541323662 – Reliable FFC/FPC Connector for Industrial Applications
Secure your electronic projects with the Molex FFC FPC Connector featuring a 0.50mm pitch and 36 circuits. Its right-angle, bottom contact design ensures compact and reliable connections. Gold-plated contacts enhance conductivity, while UL and RoHS certifications guarantee safety and compliance. Constructed from high-temperature thermoplastic, it withstands demanding conditions with up to 20 mating cycles. Perfect for flexible printed circuit board applications in consumer electronics, industrial equipment, and medical devices, this connector combines durability, precision, and ease of installation, making it an essential component for modern electronic systems.
Buy Molex 541323662 now and experience unmatched reliability and performance in flexible circuit connections.
