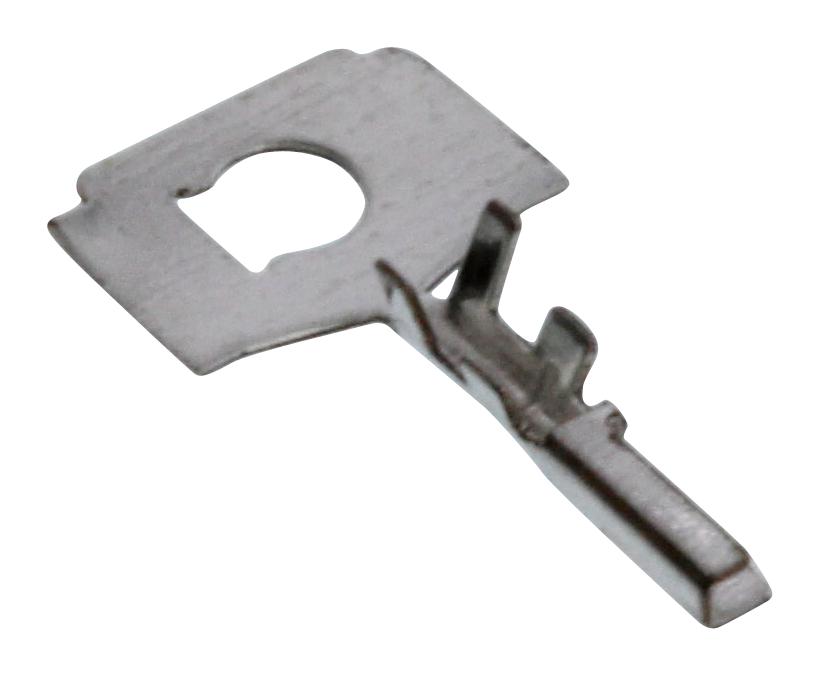

MOLEX 1045216001 IllumiMate Connector
The MOLEX 104521-6001 is a receptacle terminal within the IllumiMate Connector System, designed for 1.25mm wire-to-board applications. Constructed with a phosphor bronze body and tin plating, this connector offers excellent conductivity and corrosion resistance. It's ideal for use in various electronic devices and automotive applications where secure and reliable wire-to-board connections are essential. The connector supports wire sizes ranging from 26 to 32 AWG and has a maximum wire insulation diameter of 0.95mm.
MOLEX 1045216001 IllumiMate Connector Specifications:
- overview: IllumiMate Connector System
- description: IllumiMate 1.25mm Wire-to-Board Connector, Receptacle Terminal, Pre-plated, Tin (Sn)
- product_family: Signal, Wire-to-Board
- application: Wire-to-Board
- durability_mating_cycles: 30
- gender: Female
- material_metal: Phosphor Bronze
- material_plating: Tin
- current_max_per_contact: 1.5A
- voltage_max: 250V
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 0.95mm
- wire_size_awg: 26, 32
- wire_size_mm2: N/A
- net_weight: 0.028/g
- packaging_type: Reel
- lead_free_process_capability: N/A
- elv_compliance: Not Relevant
- china_rohS: Compliant
- reach_svhc: Not Contained Per -ED/88/2018
- halogen_free_status: Low-Halogen
- use_with: IllumiMate Housings 104092 , 104105
- series: 104521 Series
- crimp_specification: CS-104521-001-001
- packaging_specification: PK-104521-001-001
- product_specification: PS-104091-001-001
- sales_drawing: SD-104521-001
