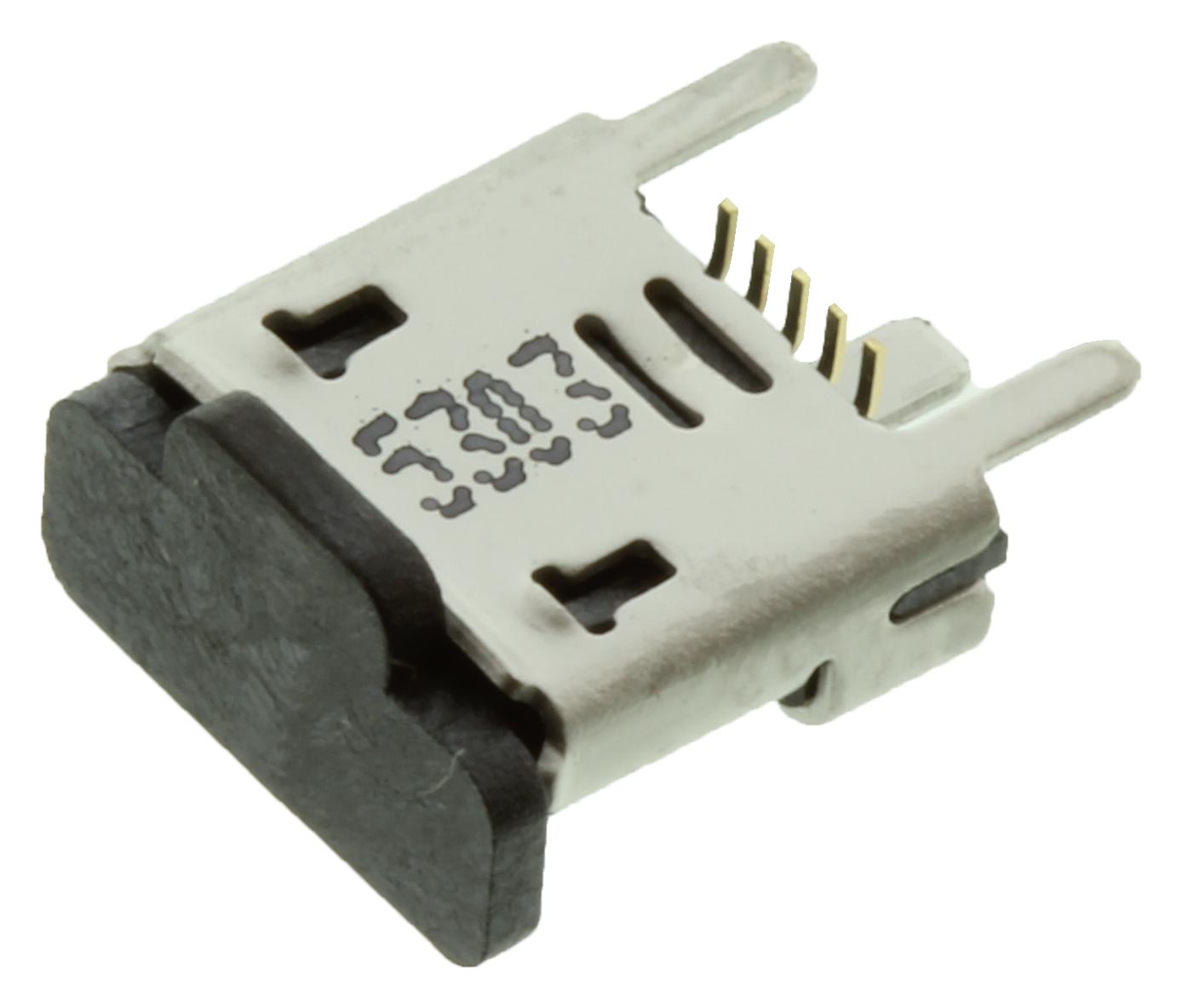

MOLEX 1051330001 Micro-USB B Receptacle
The MOLEX 105133-0001 is a Micro-USB B receptacle designed for use in consumer electronics applications. This surface mount connector features a vertical orientation and is lead-free, aligning with modern environmental standards. It is designed for reliable data and power transfer, offering a robust solution for wire-to-board connections. The receptacle supports a maximum current of 1.8A for power contacts and 1.0A for signal contacts, and is rated for up to 30V AC (RMS). Its polarized design and keyed mating interface ensure proper alignment and secure connections.
MOLEX 1051330001 Micro-USB B Receptacle Specifications:
- Series: 105133
- Application: Consumer USB Products
- Connector Type: Receptacle
- USB Standard: USB 2.0 Micro-B
- Circuit Count (Loaded): 5
- Circuit Count (Maximum): 5
- Durability (Mating Cycles): 10000
- Flammability: 94V-0
- Gender: Receptacle
- Keying: Yes
- Lock to Mating Part: No
- Material (Metal): Copper Alloy
- Material (Plating - Mating): Gold
- Material (Plating - Termination): Gold
- Material (Resin): High Temperature Thermoplastic
- Net Weight: 0.360 g
- Number of Rows: 1
- Orientation: Vertical
- PCB Retention: None
- Packaging Type: Embossed Tape on Reel
- Polarized: Yes
- Ports: 1
- Surface Mount Compatible: Yes
- Temperature Range: -30°C to +85°C
- Waterproof / Dustproof: No
- Current (Max): 1.8A (Power), 1.0A (Signal)
- Voltage (Max): 30V AC (RMS)
- Shield Type: Full Shield
- Shielded: Yes
- Lead-free Process Capability: REFLOW
- Max Cycles at Max Process Temp: 001
- Process Temperature Max C: 260
- RoHS Compliant: Yes
- Halogen-Free Status: Low-Halogen
- Reach Compliant: Yes
