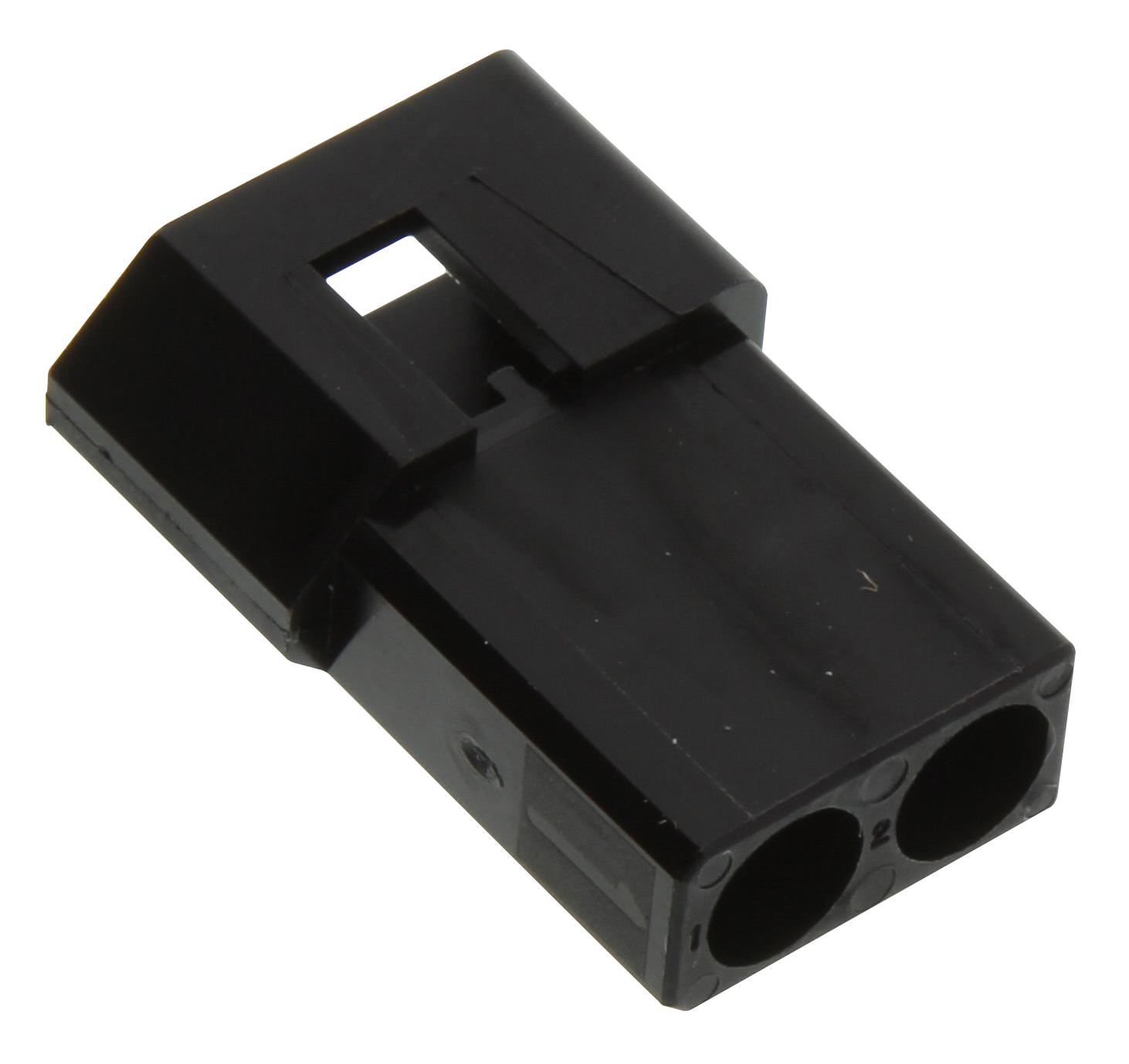

MOLEX 03097022 Power Connector
The 2.36mm diameter standard .093-inch pin and socket connectors provide reliable wire-to-wire connections for industrial applications. These plug housings are black, with a 1x2 circuit configuration, and are made from durable nylon resin. Rated for operate temperatures from -40°C to +105°C, they support a maximum current of 14A per contact. Designed for polarization and lock-in features, these connectors are RoHS and UL compliant, suitable for power and signal transmission in various electrical systems. They are ideal for applications requiring robust and precise connector solutions.
MOLEX 03097022 Power Connector Specifications:
- Diameter: 2.36mm
- Pin and Socket Size: .093 inch
- Number of Circuits: 2
- Material: Nylon
- Color: Black
- Flammability: 94V-2
- Operating Temperature: -40°C to +105°C
- Current Capacity: 14.0A per contact
- Pitch - Mating Interface: 6.30mm
- Voltage Rating: 17.0A max when used with compatible terminals
- Net Weight: 1.449 grams
- Packaging: Bag
- Certifications: UL, CSA
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Applications: Power and signal wire-to-wire connections
Buy the Molex 03097022 – Reliable Power and Signal Connectors for Industrial Applications
Shop Molex 03097022 online now to ensure reliable power and signal transmission for your industrial and electronic projects. These 2-circuit nylon housing connectors are designed for durability, supporting up to 14A per contact, with a temperature range from -40°C to +105°C. Suitable for power and signal applications, they feature polarization and locking mechanisms for secure connections. RoHS and UL certified, these connectors are ideal for engineers and technicians seeking high-quality, durable wire-to-wire connection solutions that meet the demanding needs of industrial environments.
Get Molex 03097022 today—built for secure and durable wire-to-wire power and signal connections in industrial systems.
