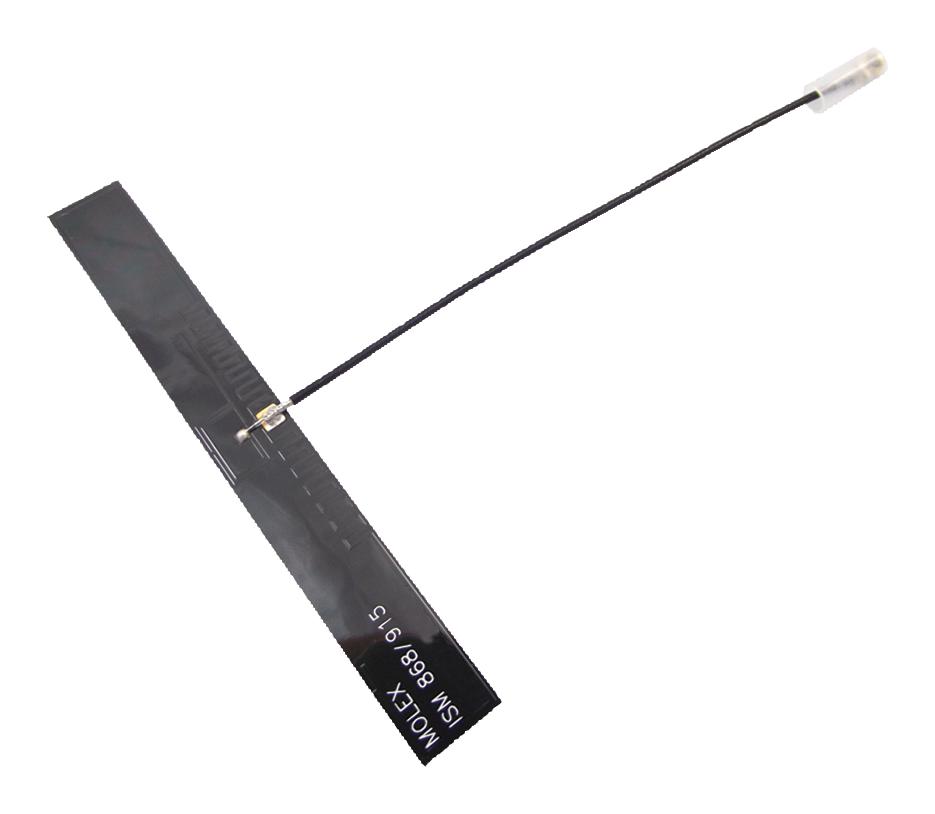

MOLEX 1052620003 ISM 868/915 MHz Stand Alone Antenna
The MOLEX 105262-0003 is a compact ISM 868/915 MHz antenna designed for wireless communication applications. It includes a 200mm cable and adhesive mounting style, providing flexibility in installation. With a peak gain of 1.2 dBi and an omnidirectional radiation pattern, this antenna ensures reliable wireless connectivity across a wide range of frequencies. It is RoHS compliant and suitable for various industrial and consumer applications requiring wireless data transmission.
MOLEX 1052620003 ISM 868/915 MHz Stand Alone Antenna Specifications:
- Cable Length: 200.00mm
- Depth: 0.10mm
- Length: 79.00mm
- Mounting Style: Adhesive
- Net Weight: 0.690/g
- Packaging Type: Tray
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Weight: 0.93g
- Width: 10.00mm
- Band#1 F_End (MHz): 870
- Band#1 F_Start (MHz): 863
- Band#2 F_End (MHz): 928
- Band#2 F_Start (MHz): 902
- Electrical Connectivity Cable Impedance: 50#
- Number of Bands: 2
- Peak Gain (dBi): 1.2
- Return Loss - S11 (dB): < -11, < -13
- Total Efficency (dB): > -3.2, > -2
Buy the 105262-0003 MOLEX ISM 868/915 MHz Stand Alone Antenna | myMectronic
Purchase the MOLEX 105262-0003 ISM 868/915 MHz Stand Alone Antenna securely and reliably through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1052620003?
You can click on the BUY or RFQ button to purchase 1052620003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1052620003?
You can download the 1052620003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1052620003?
MOLEX
