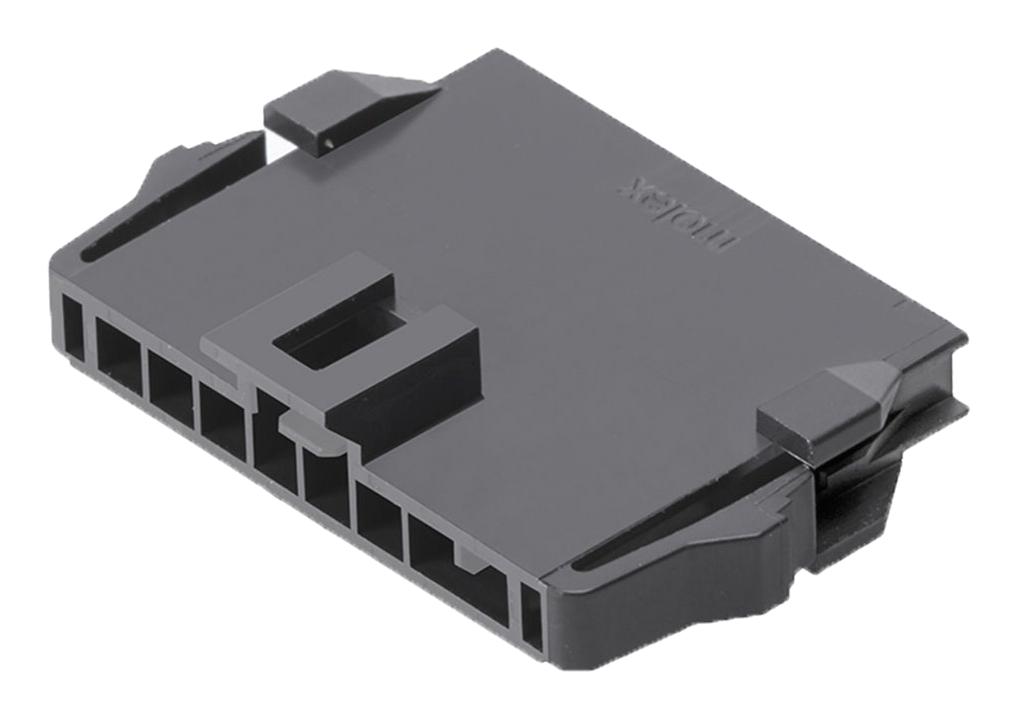

MOLEX 2002771206 Nano-Fit Power Connector
Nano-Fit Power Connectors provide compact, reliable, and fully isolated header terminals with keying options for secure mating and prevention of cross-mating. Designed for applications in consumer electronics, automotive, aerospace, and industrial equipment, these connectors offer ultra-low mate force, high durability, and space-saving features that support multi-layer PCB designs. They ensure stable contact performance with redundant current paths and are compatible only with Nano-Fit receptacles, making them ideal for high-density, quick-assembly environments while maintaining excellent signal integrity and long-term reliability.
MOLEX 2002771206 Nano-Fit Power Connector Specifications:
- Voltage (Max): 250V
- Current (Max): 6.54A
- Contact Resistance: 10 milliohms over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 cycles for Tin plating, 50 cycles for Gold plating
- Housing Material: Receptacle nylon UL 94V-0, Header LCP UL 94V-0
- Contact Material: High-conductivity copper
- Plating: Tin or 381) (15") Gold, 762)) (30") Gold
- Solder Tail Area Plating: Tin
- Operating Temperature: -40°C to +105°C (Tin), -40°C to +115°C (Gold)
- PCB Thickness: 1.60mm and 2.40mm
- RoHS Compliant: Yes
- Halogen Free: Yes
- Glow-Wire Capable: Yes
Buy the Molex Series Nano-Fit 2.50mm Pitch Power Connector: 2002771206
Order the Molex Nano-Fit Power Connector now to experience reliable, space-efficient connections in electronic devices. Featuring fully isolated terminals, keying options, and ultra-low mate force, these connectors are designed for fast, secure assembly and long-term performance. Perfect for consumer, automotive, aerospace, and industrial applications, their compact size and high durability make them ideal for high-density PCB layouts. Enhance your assembly process with quick pick-and-place compatibility and ensure robust electrical contact for demanding systems.
Get Molex Nano-Fit 2.50mm Pitch Power Connector today—built for space-saving, reliable electrical connections with secure keying for your high-density applications.
Frequently Asked Questions
Where can I buy MOLEX 2002771206?
You can click on the BUY or RFQ button to purchase 2002771206 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2002771206?
You can download the 2002771206 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2002771206?
MOLEX
