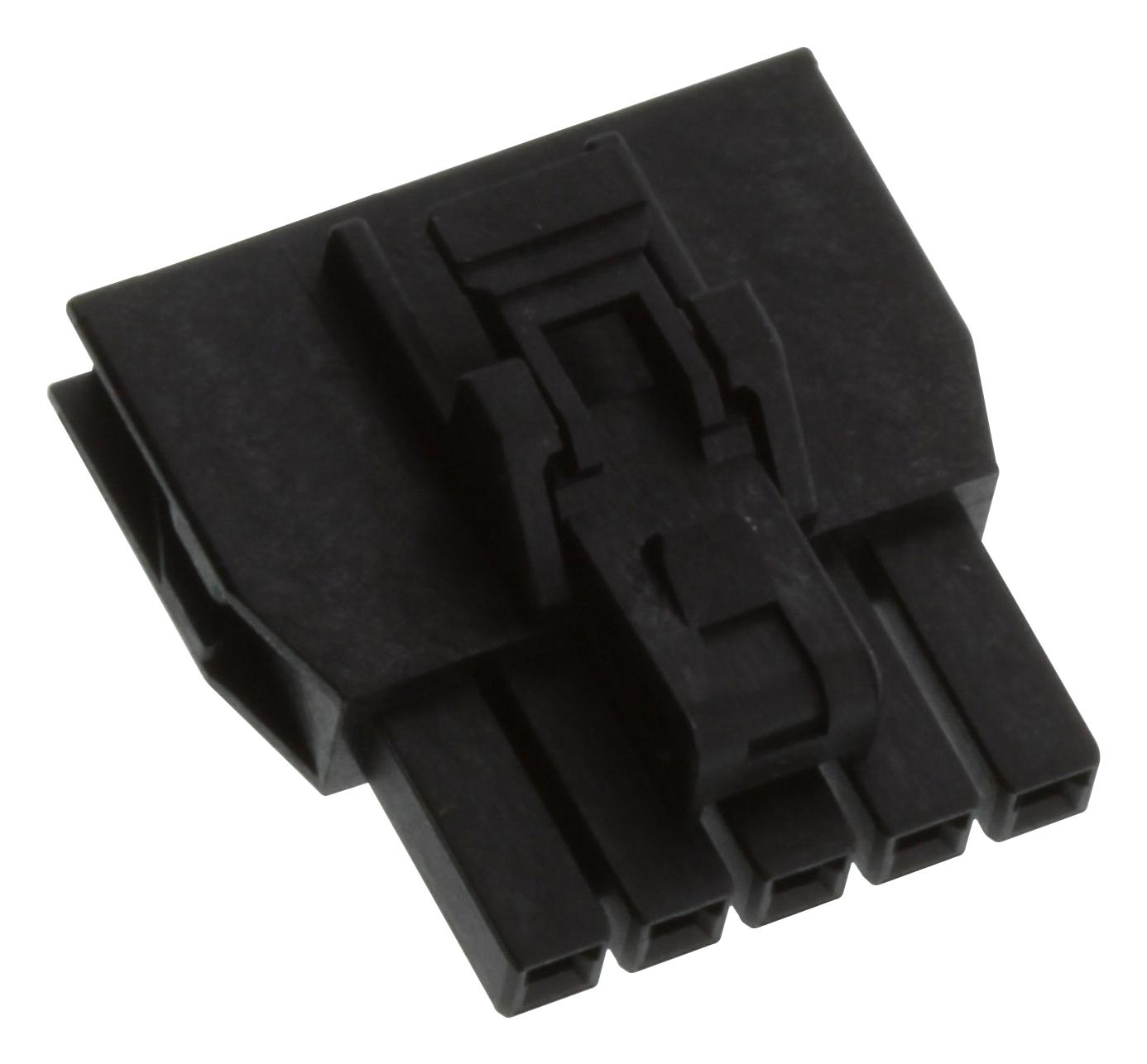

MOLEX 1053071205 Nano-Fit Receptacle Housing
The MOLEX 105307-1205 Nano-Fit Receptacle Housing is a compact and reliable connector solution for power applications. Designed with a 2.50mm pitch and a single-row configuration, it offers efficient space utilization in wire-to-board connections. The housing is glow-wire capable and constructed from Nylon, ensuring durability and safety. It is part of the Nano-Fit Power Connector series, known for its robust performance and ease of use in various industrial and consumer electronics applications.
MOLEX 1053071205 Nano-Fit Receptacle Housing Specifications:
- Series: 105307
- Application: Power, Wire-to-Board
- Application Tooling: 63824-4600
- Circuits (maximum): 5
- Color - Resin: Black
- Flammability: 94V-0
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 0.580/g
- Number of Rows: 1
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 2.50mm
- Pitch - Termination Interface: 2.50mm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40°C to +105°C (tin), -40°C to +115°C (gold)
- Current - Maximum per Contact: 6.5A
- Mates With: Nano-Fit Headers 105309, 105311, 105313
- Use With: Nano-Fit Crimp Terminal 105300, NanoFit TPA Retainer 105325
- Extraction Tool: for 638244600 Nano-Fit Power Connectors and Crimp Terminals, 20-26 AWG
Buy the 105307-1205 MOLEX Nano-Fit Receptacle Housing | myMectronic
Purchase the MOLEX 105307-1205 Nano-Fit Receptacle Housing securely and efficiently through our online store.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1053071205?
You can click on the BUY or RFQ button to purchase 1053071205 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1053071205?
You can download the 1053071205 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1053071205?
MOLEX
