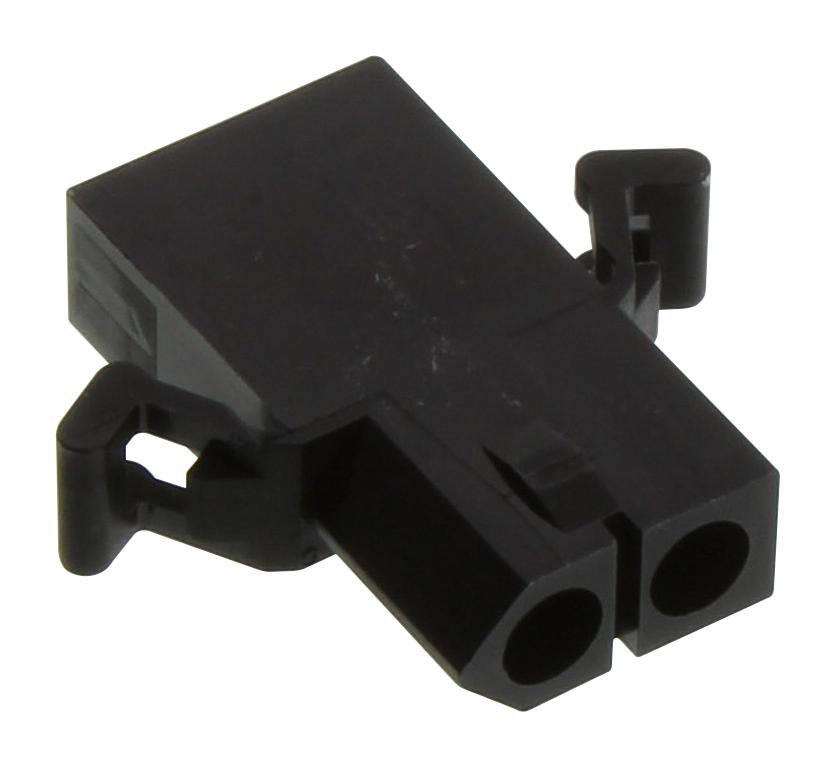

MOLEX 03096021 Power Connector
This is a standard .093 inch pin and socket connector housing designed for reliable power connections. It features a 2-circuit receptacle with pre-bent mounting ears, ramps for ease of assembly, and a robust black nylon resin construction. Suitable for various electronic applications, it operates within a temperature range of -40°C to +105°C, with a maximum current of 14.0A per contact. Certified by UL and CSA, this connector offers a secure, polarized, and RoHS-compliant solution for wire-to-wire connections in industrial and electronic devices.
MOLEX 03096021 Power Connector Specifications:
- Diameter: 2.36mm
- Number of Circuits: 2
- Color - Resin: Black
- Flammability: 94V-2
- Gender: Receptacle
- Glow-Wire Capable: No
- Keying to Mating Part: Polarized
- Material - Resin: Nylon
- Net Weight: 1.720 grams
- Number of Rows: 1
- Packaging Type: Bag
- Panel Mount: Yes
- Pitch - Mating Interface: 6.30mm
- Pitch - Termination Interface: 6.30mm
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 14.0A
Buy the Buy Molex Standard .093 Connectors Part Number 0003096021 Online
Secure your electronic projects with the Molex Power Connector. Designed for reliable wire-to-wire connections, this 2-circuit housing features pre-bent mounting ears for easy assembly. Made from durable nylon resin, it operates within a temperature range of -40°C to +105°C and supports up to 14.0A per contact. Certified by UL and CSA, it is RoHS compliant and ideal for industrial and electronic applications requiring robust and safe power connections. Purchase online for quick delivery and dependable quality.
Order your Molex Series1545 0003096021 connector today and ensure dependable power distributions in your electronic projects with high-quality, RoHS-compliant components.
Frequently Asked Questions
Where can I buy MOLEX 03096021?
You can click on the BUY or RFQ button to purchase 03096021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 03096021?
You can download the 03096021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 03096021?
MOLEX
