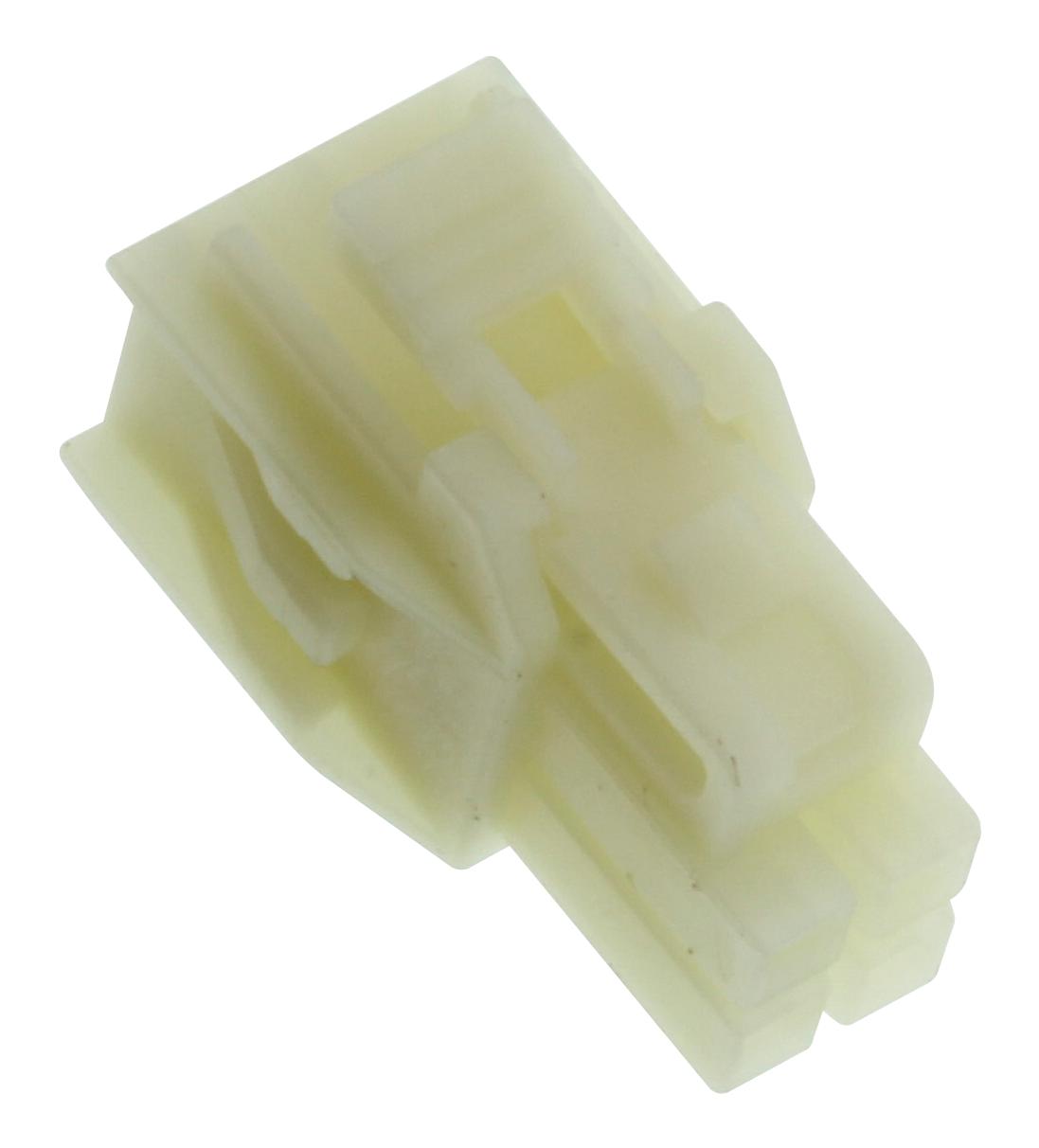

MOLEX 1053082204 Nano-Fit Receptacle Housing
The MOLEX 105308-2204 Nano-Fit receptacle housing is a compact and reliable connector solution for power applications, particularly in wire-to-board configurations. Designed with a dual-row layout and 4 circuits, this housing is ideal for applications requiring efficient power transmission in a small footprint. It is glow-wire capable and constructed from Nylon resin with a 94V-0 flammability rating. The operating temperature range is -40°C to +105°C for tin and -40°C to +115°C for gold, ensuring performance across a wide range of environmental conditions. This connector is part of the 105308 series and is designed to mate with Nano-Fit headers.
MOLEX 1053082204 Nano-Fit Receptacle Housing Specifications:
- Series: 105308
- Application: Power, Wire-to-Board
- Circuits (maximum): 4
- Color - Resin: Natural
- Flammability: 94V-0
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Resin: Nylon
- Net Weight: 0.460/g
- Number of Rows: 2
- Packaging Type: Bag
- Panel Mount: No
- Pitch - Mating Interface: 2.50mm
- Pitch - Termination Interface: 2.50mm
- Polarized to Mating Part: Yes
- Temperature Range - Operating: -40°C to +105°C (tin), -40°C to +115°C (gold)
- Current - Maximum per Contact: 6.5A
- Application Tooling: 63824-4600
- Mates With: Nano-Fit Headers 105310, 105312, 105314
- Use With: Nano-Fit Crimp Terminal 105300, NanoFit TPA Retainer 105325
- EU ELV: Not Relevant
- EU RoHS: Compliant
- China RoHS: Not Contained
- Halogen-Free Status: Low-Halogen
