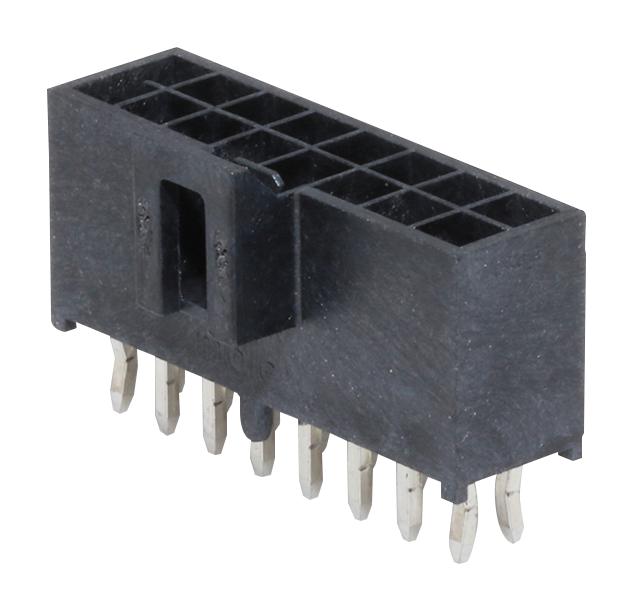

MOLEX 1053101316 Nano-Fit Power Connector
The MOLEX 105310-1316 is a Nano-Fit power connector designed for robust wire-to-board connections in various industrial applications. This vertical header features a dual-row configuration with 16 circuits and a 2.50mm pitch, making it suitable for high-density applications. Constructed with brass and liquid crystal polymer, and featuring gold and tin plating, this connector ensures excellent conductivity and durability. It is glow-wire capable, RoHS compliant, and designed for reliable performance in demanding environments.
MOLEX 1053101316 Nano-Fit Power Connector Specifications:
- circuit_count_loaded: 16
- circuit_count_max: 16
- color_resin: Black
- durability_mating_cycles: 50
- flammability: 94V-0
- glow_wire_capable: Yes
- material_metal: Brass
- material_plating_mating: Gold over Nickel
- material_plating_termination: Tin over Nickel
- material_resin: Liquid Crystal Polymer
- number_of_rows: 2
- orientation: Vertical
- pcb_tail_length: 3.20mm
- pcb_locator: Yes
- pcb_retention: Yes
- pcb_thickness_recommended: 1.60mm, 2.40mm
- packaging_type: Tray
- pitch_mating_interface: 2.50mm
- pitch_termination_interface: 2.50mm
- plating_min_mating: 0.762µm
- plating_min_termination: 1.524µm
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- stackable: No
- surface_mount_compatible: No
- current_max_per_contact: 6.5A
- voltage_max: 300V
- operating_temperature_range: -40° to +115°C
- termination_interface_style: Through Hole
- net_weight_g: 1.390
