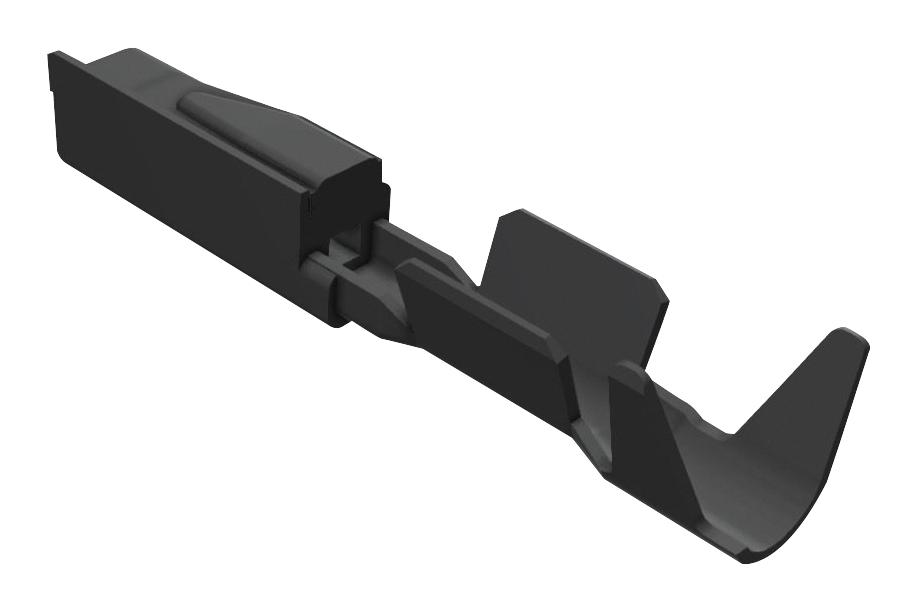

MOLEX 986581212 Female Crimp Terminal
The MOX Crimp Terminal is a female connector designed for 0.635mm wire with a crimp or compression interface, suitable for wire-to-wire or wire-to-board applications. Made from copper-nickel-silicon with stainless steel sleeves, it features tin plating for corrosion resistance. The terminal supports up to 7.5A current, withstands multiple mating cycles, and is compliant with RoHS, ELV, and REACH standards. It is provided on a reel for efficient handling and compatible with all 0.635mm MOX housings, ensuring reliable and durable electrical connections in various industrial uses.
MOLEX 986581212 Female Crimp Terminal Specifications:
- Material: Copper-Nickel-Silicon with Stainless Steel Sleeve
- Plating: Tin
- Wire Size: 18-22 AWG (0.75mm?)
- Maximum Current: 7.5A
- Mating Cycles: Up to 20
- Wire Insulation Diameter: 1.70mm max.
- Termination Interface: Crimp or Compression
- Physical Length: Approx. 0.82 inches (20.8 mm)
- Packaging Type: Reel, length 1.016 meters
- Compliance: RoHS, ELV, China RoHS, REACH SVHC not contained
- Gender: Female
- Material - Metal: Copper-Nickel-Silicon, Stainless Steel
- Product Family: Power, Wire-to-Wire, Wire-to-Board
- Application: Industrial electrical connections
Buy the Molex 98658 Series U–2013 Reliable Female Crimp Terminal for Industrial Applications
Enhance your electrical assembly with the Molex Female Crimp Terminal from the 98658 series. Designed for 0.635mm wires, this tin-plated terminal delivers dependable connectivity and supports up to 7.5A current. Its precise crimp interface and stainless steel sleeve ensure durability and consistent performance across multiple mating cycles. Suitable for wire-to-wire or wire-to-board applications, it is ideal for industrial, automation, and electronics projects. Order online now to secure high-quality, RoHS-compliant terminals with easy reel handling for efficient production.
Order your Molex 98658 Series crimp terminal today and ensure reliable electrical connections with high-quality construction for industrial use.
