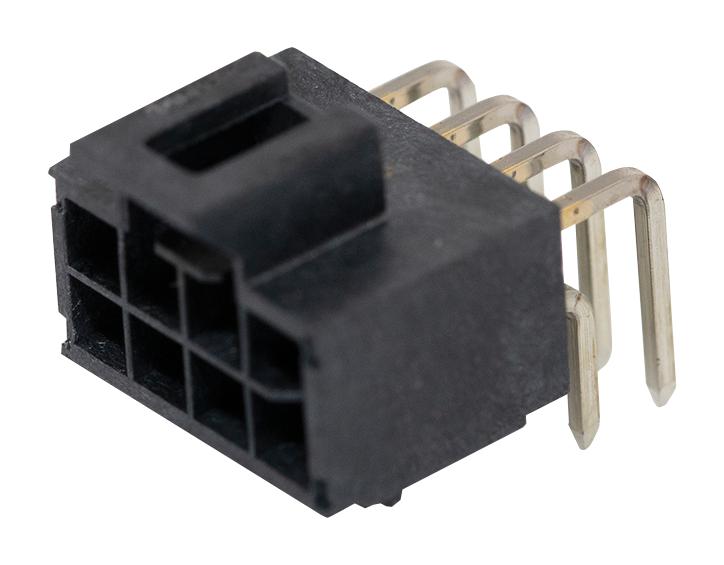

MOLEX 1053141308 Nano-Fit Power Connector
The MOLEX 105314-1308 Nano-Fit Power Connector is a right-angle header ideal for wire-to-board applications requiring a compact and reliable connection. It boasts a 2.50mm pitch and dual-row configuration with 8 circuits, making it suitable for power transmission in various electronic devices. The connector's gold-over-nickel plating ensures excellent conductivity and durability, while its glow-wire capability enhances safety. Designed for ease of use, it features polarized mating and PCB retention features, contributing to efficient assembly processes.
MOLEX 1053141308 Nano-Fit Power Connector Specifications:
- Series: 105314
- Product Family: Nano-Fit Power Connectors
- Application: Power, Wire-to-Board
- Circuits (Loaded): 8
- Circuits (maximum): 8
- Color - Resin: Black
- Durability (mating cycles max): 50
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 0.900/g
- Number of Rows: 2
- Orientation: Right Angle
- PC Tail Length: 3.20mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm, 2.40mm
- Packaging Type: Tray
- Pitch - Mating Interface: 2.50mm
- Pitch - Termination Interface: 2.50mm
- Plating min - Mating: 0.762µm
- Plating min - Termination: 1.524µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Shrouded: Yes
- Stackable: No
- Surface Mount Compatible (SMC): No
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 300V
- Temperature Range - Operating: -40° to +115°C
- Termination Interface: Style: Through Hole
