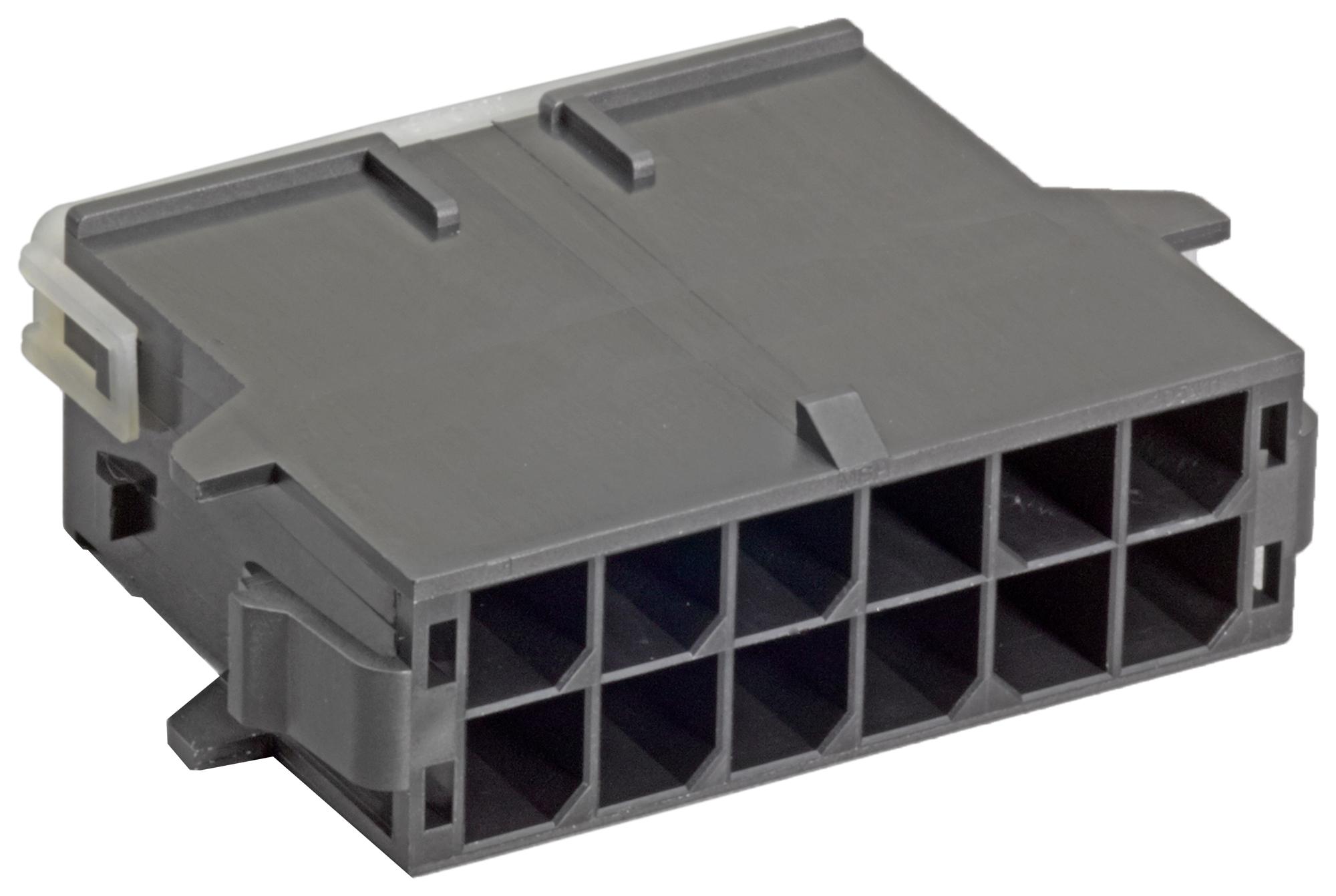

MOLEX 1054110104 Power Connector
Mega-Fit Power Connectors are high-current, power-dense connectors designed for 48V/25.0A applications, offering secure locking, polarity protection, and compatibility with various header and receptacle series. These connectors feature a 5.70mm pitch, fully isolated terminals, and a unique keying system to prevent mis-mating. They support hot-plugging up to 30 cycles, ensuring reliable, long-term performance in industrial, consumer, and telecommunication environments. Constructed with UL 94 V-0 rated housing and high-conductivity copper contacts, these connectors meet RoHS and glow-wire standards for safety and environmental compliance.
MOLEX 1054110104 Power Connector Specifications:
- Voltage (max.): 600V
- Current (max.): 25.0A
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Insulation Resistance (min.): 1,000 Megohms
- Contact Insertion Force (max.): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max.): 85N
- Housing Material: UL 94 V-0, Glow Wire compliant
- Contact Material: High-Conductivity Copper
- Contact Plating: Gold (0.38 or 0.76 µm) or Tin
- Solder Tail Plating: Tin
- Underplating: Nickel
- PCB Thickness: 1.60mm and 2.40mm
- Operating Temperature: -40°C to +150°C
- Mates With: Mega-Fit Receptacles and Plugs
- Packaging: Bag, Reel, Tray
- RoHS Compliant: Yes
- Glow Wire Capable: Yes
Buy the Buy Molex Mega-Fit Power Connectors Part Number 1054110104 Online
Order Molex Mega-Fit Power Connectors online now to experience high-current capacity, secure locking, and exceptional durability. Designed for industrial, telecommunication, and consumer applications, these connectors support 25A per circuit and feature a 5.70mm pitch with advanced keying and isolation. They meet UL, RoHS, and glow-wire standards, ensuring safety and compliance. Whether for high-power systems, automation, or heavy equipment, these connectors offer reliable performance, easy installation, and long-lasting durability, making them an essential choice for your power distribution needs.
Get Molex Mega-Fit Power Connectors today—engineered for high-current applications with secure locking and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 1054110104?
You can click on the BUY or RFQ button to purchase 1054110104 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054110104?
You can download the 1054110104 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054110104?
MOLEX
