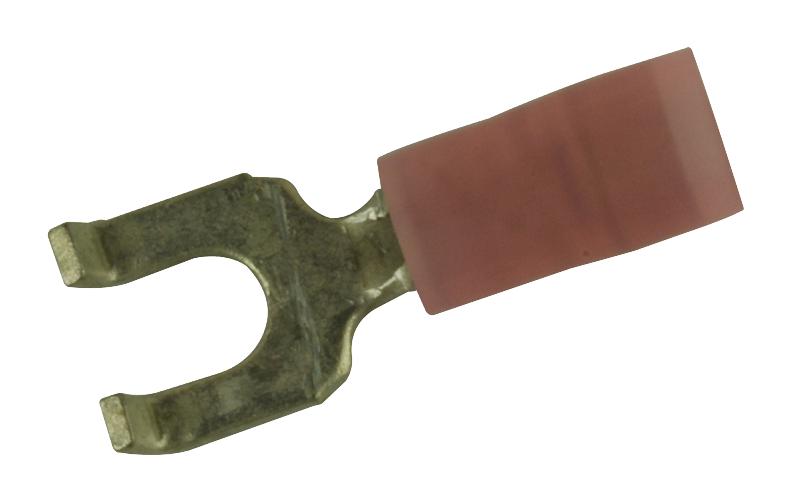

MOLEX 191270010 Avikrimp Spade Terminal
The MOLEX 19127-0010 Avikrimp Flanged Spade Tongue Terminal is a robust and reliable connector solution for a wide range of applications. Designed for use with 22-18 AWG wire and a stud size of 8 (M4), this terminal offers a secure and stable connection. The closed barrel design ensures excellent crimp retention, while the nylon (PA) insulation provides durability and electrical insulation. It is commonly used in automotive, industrial equipment, and consumer electronics where a dependable spade connector is required. The terminal is RoHS compliant, reflecting MOLEX's commitment to environmental responsibility. For optimal performance, use with recommended MOLEX application tooling.
MOLEX 191270010 Avikrimp Spade Terminal Specifications:
- Overview: Solderless Terminals
- Product Family: Ring and Spade Terminals
- Series: 19127
- Product Name: Avikrimp
- Type: Spade
- Barrel Type: Closed
- Flammability: 94V-2
- Insulation: Nylon (PA)
- Material - Plating Mating: Tin
- Net Weight: 0.700/g
- Packaging Type: Bag
- Stud Size: 8 (M4)
- Wire Insulation Diameter: 3.56mm max.
- Wire Size AWG: 18, 20, 22
- Wire Size mm²: 0.25-1.50
- Agency Certification CSA: LR18689
- Agency Certification UL: E32244
- UPC: 800753024205
- Engineering Number: AA-815-08
- Mil-Spec: N/A
- Crimp Quality Equipment: Yes
- Lead-freeProcess Capability: N/A
Buy the 19127-0010 MOLEX Avikrimp Spade Terminal | myMectronic
Purchase the MOLEX 19127-0010 Avikrimp Spade Terminal securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 191270010?
You can click on the BUY or RFQ button to purchase 191270010 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 191270010?
You can download the 191270010 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 191270010?
MOLEX
