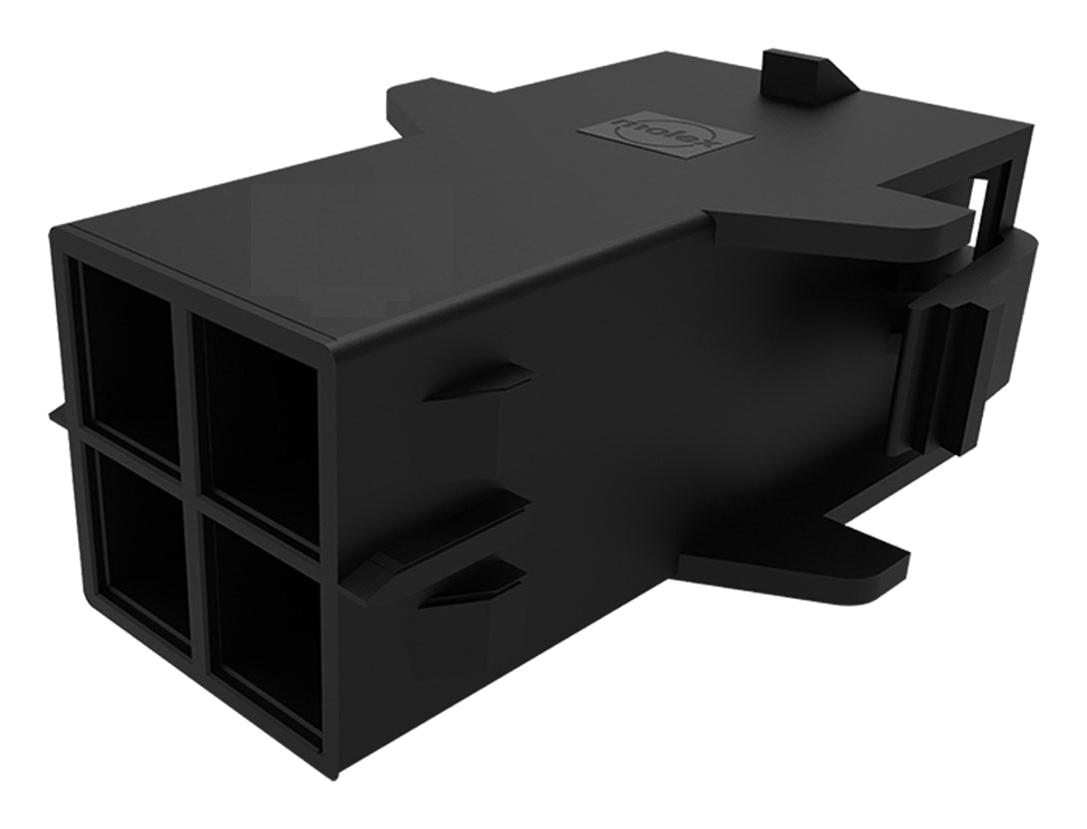

MOLEX 1054111106 Power Connector
Mega-Fit Power Connectors are high-current, 5.70mm pitch connectors designed for power applications up to 25.0A per circuit. They feature fully protected header pins and receptacle terminals, with unique keying options to ensure proper mating during installation. These connectors support hot plugging at 48V/25.0A through sacrificial contacts, improve design flexibility with polarized and keyed features, and include rugged, UL 94 V-0 rated housings. Ideal for industrial, telecommunication, and consumer appliances, they deliver reliable performance in demanding environments with easy mating and high power density.
MOLEX 1054111106 Power Connector Specifications:
- Voltage: 600V
- Current: 25.0A
- Housing Material: UL 94 V-0 rated, glow wire compliant
- Contact Material: High-Conductivity Copper with Gold or Tin plating
- Contact Resistance: 6 millichms
- Insulation Resistance: 1,000 Megohms
- Dielectric Withstanding Voltage: No Breakdown
- Mechanical Insertion Force: Max 6.8N
- Unmating Force: Max 6.5N (gold), Max 6.8N (tin)
- Contact Retention Force: Min 30N
- Header Pin Retention Force: Min 89N per pin
- PCB Thickness Compatibility: 1.60mm and 2.40mm
- Operating Temperature Range: -40°C to +150°C
- Certifications: RoHS, UL, CSA
- Packaging: Bag, Reel, Tray
- Use with: Mega-Fit receptacles, plugs, TPA
- UL File No.: E29179
- CSA File No.: LR-19980_A_000
Buy the Buy Molex Power Connectors Part Number 1054111106 Online
Purchase the Molex Power Connector with part number 1054111106 online to ensure high current capability, durable UL-rated housing, and secure connection features. Ideal for industrial machinery, telecommunication equipment, and consumer appliances, this connector supports 25A per circuit and is RoHS compliant. Its design includes polarized, keyed features to prevent mis-mating, a robust locking mechanism for secure mating, and flexible mounting options for PCB assembly. Ensure your power systems are reliable with this high-performance, easy-to-mate connector designed for demanding environments.
Get Molex 1054111106 today—designed for high current power delivery, reliability, and easy assembly in industrial and consumer electronics.
Frequently Asked Questions
Where can I buy MOLEX 1054111106?
You can click on the BUY or RFQ button to purchase 1054111106 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054111106?
You can download the 1054111106 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054111106?
MOLEX
