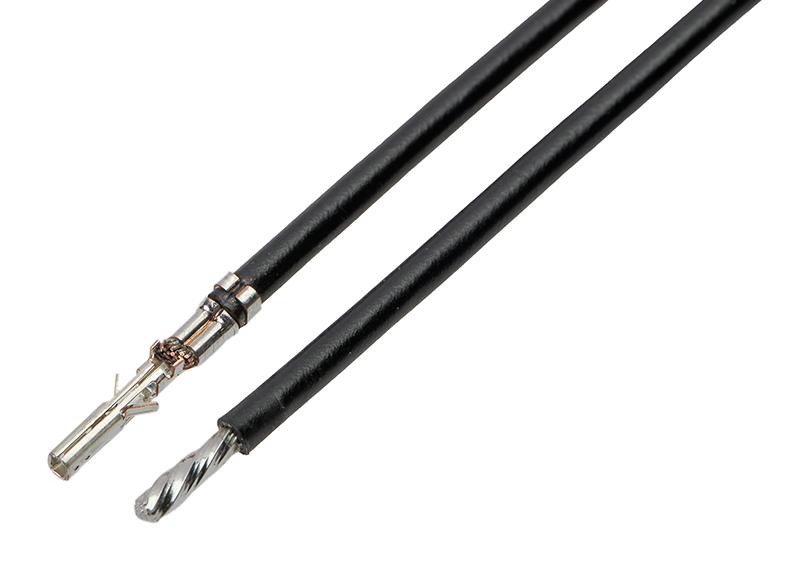

MOLEX 2147611113 Power Connector
Pre-crimped Lead Micro-Fit 3.0 Female-to-Pigtail offers a reliable wire-to-wire connection solution with a 225mm cable length, 20 AWG wire size, and Tin-plated contacts. Designed for power and wire-to-wire applications, these off-the-shelf pre-crimped leads feature a female-pigtail configuration, suitable for Micro-Fit 3.0 crimp terminals and compatible with Micro-Fit receptacle housings 43025, 43645, and panel mount options. They are UL listed, RoHS compliant, halogen-free, and support maximum currents of 8.5A, ensuring safe and efficient electrical performance in industrial and electronic systems.
MOLEX 2147611113 Power Connector Specifications:
- Cable Length: 225.00mm
- Wire Size: 20 AWG
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 8.5A
- Color - Resin: Black
- Gender: Female-Pigtail
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Net Weight: 1.642g per lead
- RoHS Compliance: Yes
- Halogen-Free: Not Low-Halogen
- UL Certification: UL 10002
- Application: Power, Wire-to-Wire, Wire-to-Board
Buy the Molex 214761 U–2013 Reliable Power Connectors for Industrial Applications
Discover the dependable Molex Power Connector series 214761, engineered for efficient power distribution and reliable wire-to-wire connections in industrial environments. With a durable Tin-plated contact finish, 20 AWG wire compatibility, and a 225mm cable length, these pre-crimped leads are UL listed, RoHS compliant, and halogen-free for safe installation. Perfect for powering industrial equipment, automation systems, and electronic devices, these connectors support maximum currents of 8.5A, ensuring optimal performance and safety. Buy online today and enhance your project’s reliability.
Order your Molex series 214761 power leads today and ensure reliable electrical connections for your industrial and electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2147611113?
You can click on the BUY or RFQ button to purchase 2147611113 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147611113?
You can download the 2147611113 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147611113?
MOLEX
