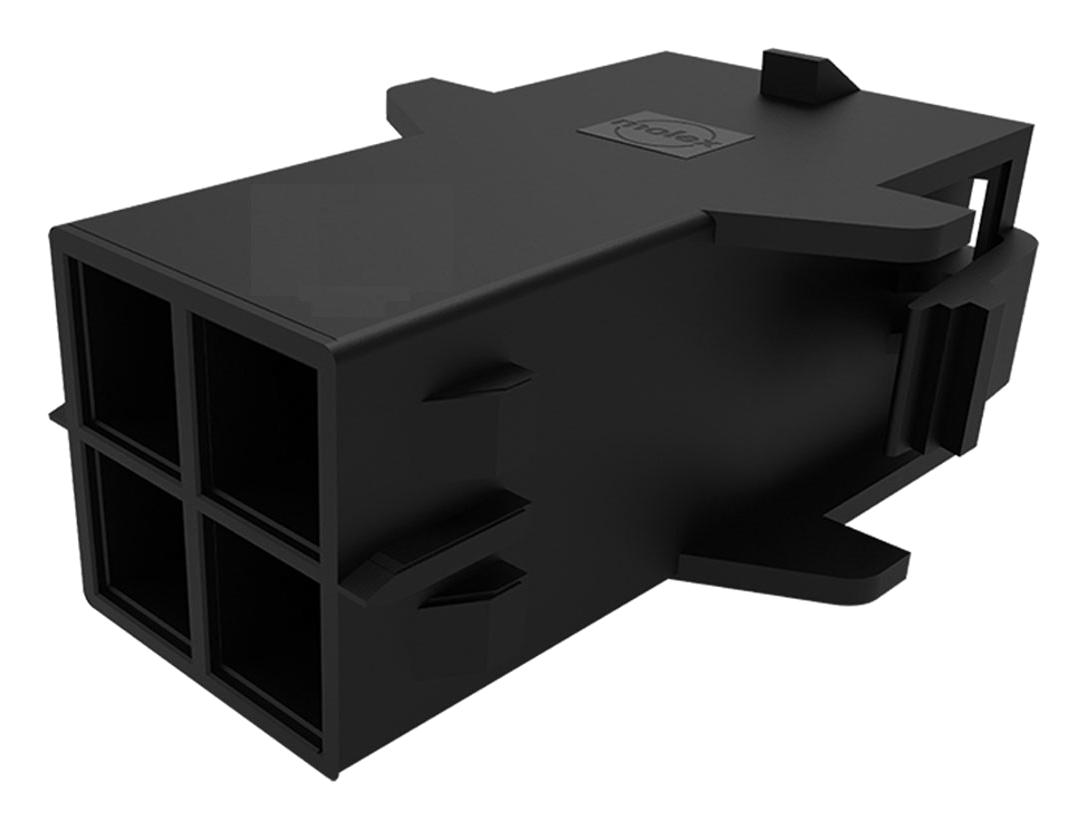

MOLEX 1054111108 Power Connector
The Mega-Fit Power Connectors are highly reliable electrical connectors designed for efficient power transmission in industrial, automotive, and consumer applications. Featuring 5.70mm pitch, these connectors support currents up to 25.0A per circuit and provide secure, insulated connection with positive locking housings, tin or gold-plated contacts, and polarized keying for correct mating. They offer multiple configurations including vertical and right-angle headers, dual-row and single-row systems, with features such as tangless terminals, internal locking mechanisms, and RoHS compliance. The connectors ensure durability, ease of assembly, and protection against electrical arcing, making them suitable for demanding environments.
MOLEX 1054111108 Power Connector Specifications:
- Voltage (max.): 600V
- Current (max.): 25.0A
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Current leakage: <5mA
- Insulation Resistance (min.): 1000 Megohms
- Contact Insertion Force (max.): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max.): 85N
- Housing Material: UL 94 V-0, Glow Wire compliant
- Contact Material: High-Conductivity Copper
- Plating: Gold (0.38 or 0.76 mm) options or Tin (Sn)
- Solder Tail Area: Tin
- Underplating: Nickel
- PCB Thickness: 1.60 and 2.40 mm
- Operating Temperature: -40 to +150°C
- Mates With: Mega-Fit receptacles and plugs, dual and single-row systems
- Packaging: Bag, Reel, Tray
- UL File No.: E29179
- CSA File No.: LR-19980_A_000
- RoHS Compliant: Yes
- Glow Wire Capable: Yes
Buy the Molex 1054111108 – Reliable Power Connectors for Industrial Applications
Enhance your electrical projects with the reliable Power Connectors supporting 25A per circuit and 600V voltage capacity. Designed with high-conductivity copper contacts and gold or tin plating, these connectors provide secure, insulated, and durable connections. Featuring internal locking mechanisms, polarized keying, and RoHS compliance, they simplify assembly and promote safety. Suitable for industrial machinery, automotive systems, and home appliances, these connectors ensure long-term performance, electrical safety, and system reliability, making them ideal for demanding applications requiring efficient power management.
Order your Molex Series 1054111108 power connectors today and give your projects the dependable quality they deserve, with secure locking and high current capacity.
Frequently Asked Questions
Where can I buy MOLEX 1054111108?
You can click on the BUY or RFQ button to purchase 1054111108 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054111108?
You can download the 1054111108 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054111108?
MOLEX
