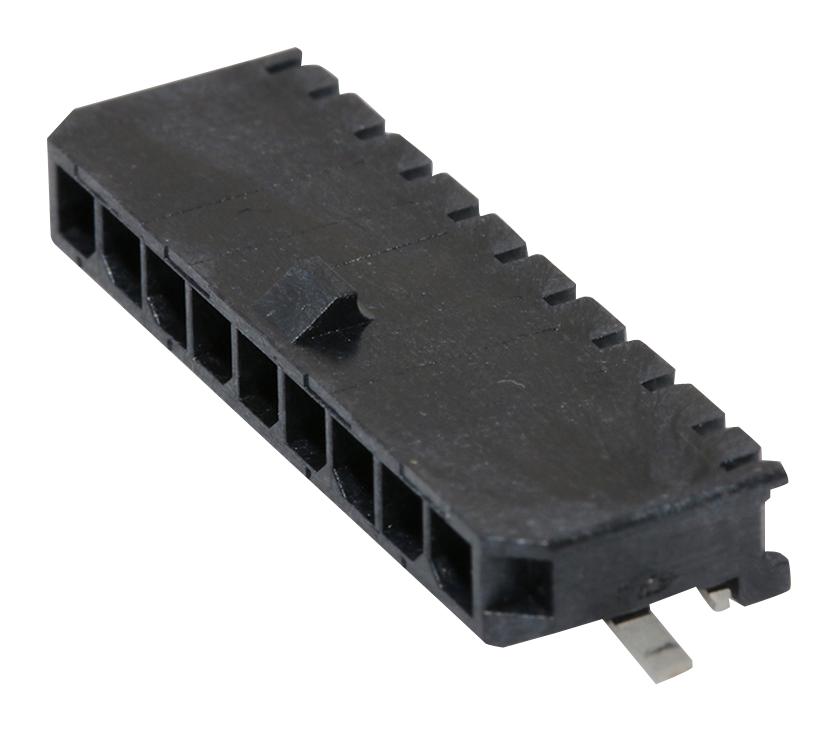

MOLEX 436500912 Micro-Fit 3.0 Header
The MOLEX 43650-0912 is a Micro-Fit 3.0 right-angle header, part of the Micro-Fit 3.0 Connector System family. This header is designed for wire-to-board applications and features 9 circuits arranged in a single row. It boasts tin plating for reliable solder connections and is glow-wire capable, meeting specific safety standards for household electrical appliances. Constructed with high-temperature thermoplastic and brass, it offers durability and performance in demanding environments. The header is polarized to the PCB and features a recommended PCB thickness of 1.60mm, ensuring proper alignment and secure connection.
MOLEX 436500912 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Series: 43650
- Application: Power, Wire-to-Board
- Circuits (Loaded): 9
- Circuits (maximum): 9
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Duration at Max. Process Temperature (seconds): 030
- Lead-freeProcess Capability: REFLOW
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
