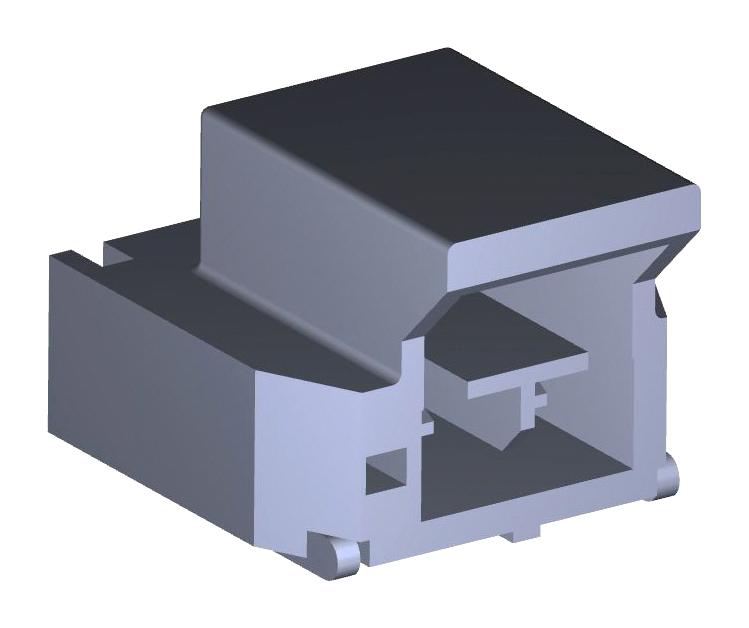

MOLEX 1054301102 Nano-Fit Power Connector
Nano-Fit Power Connectors are surface-mount, right-angle headers designed for wire-to-board applications. Featuring a 2.50mm pitch and single-row configuration, these connectors support up to two circuits, with a maximum of two circuits loaded. Constructed from durable materials such as brass with tin plating, they are glow-wire capable and rated for 6.5A and 250V AC. Suitable for applications requiring high reliability and compact design, they operate within a temperature range of -40°C to +105°C, ensuring excellent performance in diverse environments.
MOLEX 1054301102 Nano-Fit Power Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 2
- Maximum Circuits (Loaded): 2
- Color: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Durability (mating cycles): 25
- Glow-Wire Capable: Yes
- Surface Mount: Yes
- Orientation: Right Angle
Buy the Molex Series Nano-Fit Power Connectors: 1054301102
Purchase the Molex Nano-Fit Power Connector 1054301102 online today to ensure high-quality, reliable power connections for your electronics projects. Designed with a 2.50mm pitch and single-row configuration, this surface-mount, right-angle header supports up to two circuits, delivering excellent performance with a durable brass and tin-plated construction. Its glow-wire capable feature and operating temperature range of -40°C to +105°C make it suitable for various demanding applications. Secure your electronic assembly with this compact, UL-rated connector for long-lasting, stable power connections.
Get Molex Nano-Fit Power Connector 1054301102 today—built for high reliability and compact wire-to-board power solutions.
Frequently Asked Questions
Where can I buy MOLEX 1054301102?
You can click on the BUY or RFQ button to purchase 1054301102 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054301102?
You can download the 1054301102 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054301102?
MOLEX
