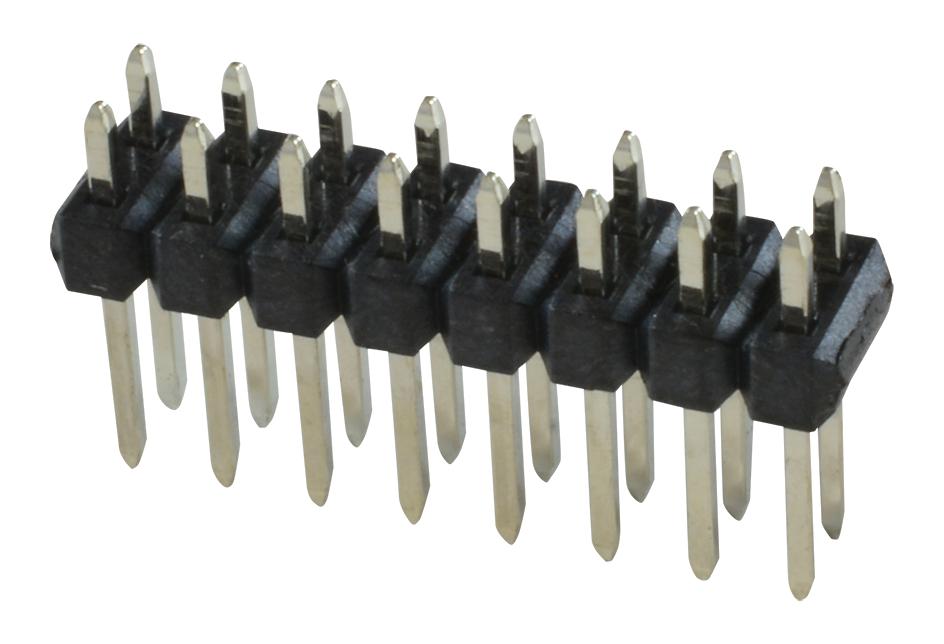

MOLEX 10897242 C-Grid Connector
The 2.54mm Pitch C-Grid Breakaway Header is a high-temperature, dual-row, vertical connector suitable for board-to-board and signal applications. It features 24 circuits with 0.38um goldeselective plating, tin PC tail plating, and a PCB tail length of 2.72mm. Made from thermoplastic with a temperature range of -40°C to +105°C, it supports a maximum current of 3.0A per contact and a maximum voltage of 250V. The connector ensures reliable connections with a durable design for industrial and electronic applications. It complies with RoHS and UL standards, with a net weight of 1.455g.
MOLEX 10897242 C-Grid Connector Specifications:
- Pitch: 2.54mm
- Circuits: 24
- Maximum Circuits: 24
- Color - Resin: None specified
- Durability: Not specified
- Flammability: None specified
- Glow-Wire Capable: No
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.455g
- Number of Rows: 2
- Orientation: Vertical
- PC Tail Length: 2.72mm
- PCB Locator: None
- PCB Retention: None
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 0.381μm gold
- Plating min - Termination: 2.032μm tin
- Polarized to Mating Part: No
- Polarized to PCB: No
- Shrouded: No
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Process: Lead-free, SMC & Wave soldering max temperature 260°C
Buy the Molex 10897242 – Reliable Connector for Industrial Applications
Purchase the Molex C-Grid Connector today for reliable, high-temperature board-to-board and wire-to-board connections. Designed with 24 circuits, gold plating, and a robust thermoplastic body, it ensures durable performance in industrial and electronic applications. With a compact 2.54mm pitch and through-hole termination, this connector offers easy installation and excellent electrical contact. Certified for RoHS and UL compliance, it’s ideal for high-reliability environments requiring secure signal and power connectivity. Order online now for fast delivery and dependable performance.
Get Molex 10897242 today—built for precision and long-lasting durability in industrial electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 10897242?
You can click on the BUY or RFQ button to purchase 10897242 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 10897242?
You can download the 10897242 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 10897242?
MOLEX
