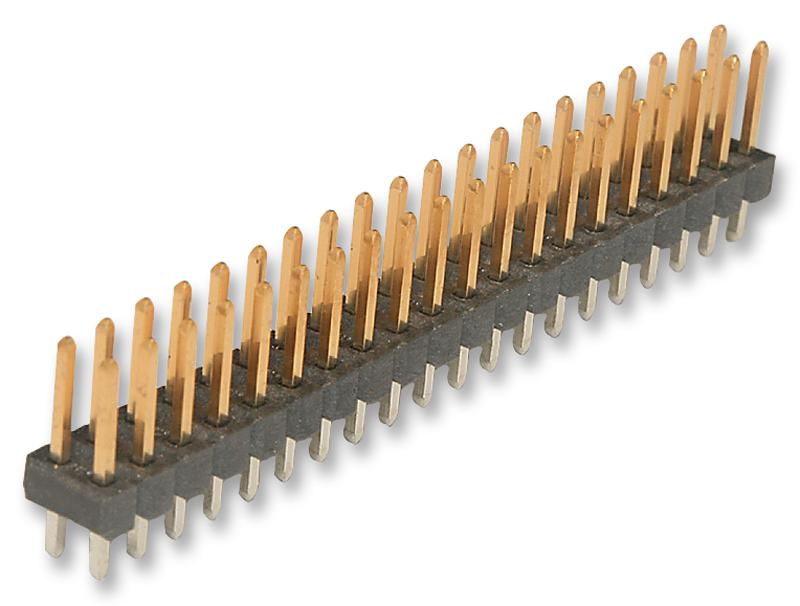

MOLEX 10897402 C-Grid Breakaway Header
The MOLEX 10-89-7402 C-Grid Breakaway Header is a versatile component ideal for board-to-board and wire-to-board connections. This header offers 40 circuits arranged in a dual-row configuration with a 2.54mm pitch, providing a secure and reliable connection. Constructed with a copper alloy and featuring gold plating for mating and tin plating for termination, it ensures excellent conductivity and durability. The high-temperature thermoplastic resin material allows for operation within a wide temperature range (-40°C to +105°C), making it suitable for demanding industrial environments. Its breakaway design simplifies assembly and maintenance, while the vertical orientation and through-hole termination style provide flexibility in PCB layout.
MOLEX 10897402 C-Grid Breakaway Header Specifications:
- product_family: PCB Headers
- series: 70280
- application: Board-to-Board, Signal, Wire-to-Board
- overview: C-Grid Connector Products
- upc: 800755021974
- circuits_loaded: 40
- circuits_maximum: 40
- color: Black
- durability_mating_cycles_max: 50
- flammability: 94V-0
- guide_to_mating_part: None
- lock_to_mating_part: None
- material_metal: Copper Alloy
- material_plating_mating: Gold
- material_plating_termination: Tin
- material_resin: High Temperature Thermoplastic
- net_weight_g: 2.589
- number_of_rows: 2
- orientation: Vertical
- pc_tail_length_mm: 2.79
- pcb_locator: No
- pcb_retention: None
- pcb_thickness_recommended_mm: 1.60
- packaging_type: Bag
- pitch_mating_interface_mm: 2.54
- plating_min_mating_um: 0.381
- plating_min_termination_um: 2.032
- polarized_to_mating_part: No
- polarized_to_pcb: No
- shrouded: No
- stackable: Yes
- temperature_range_operating_c: -40 to +105
- termination_interface_style: Through Hole
- current_maximum_per_contact_a: 3.0
- voltage_maximum_v: 250
- max_process_temp_duration_seconds: 005
- leadfree_process_capability: WAVE
- max_cycles_max_temp: 001
- process_temperature_max_c: 260
- engineering_number: A-70280-0060
- product_specification_number: PS-70280-001
- sales_drawing_number: SDA-70280-0001-4000
- halogen_free_status: Low-Halogen
- reach_svhc: Not Contained
