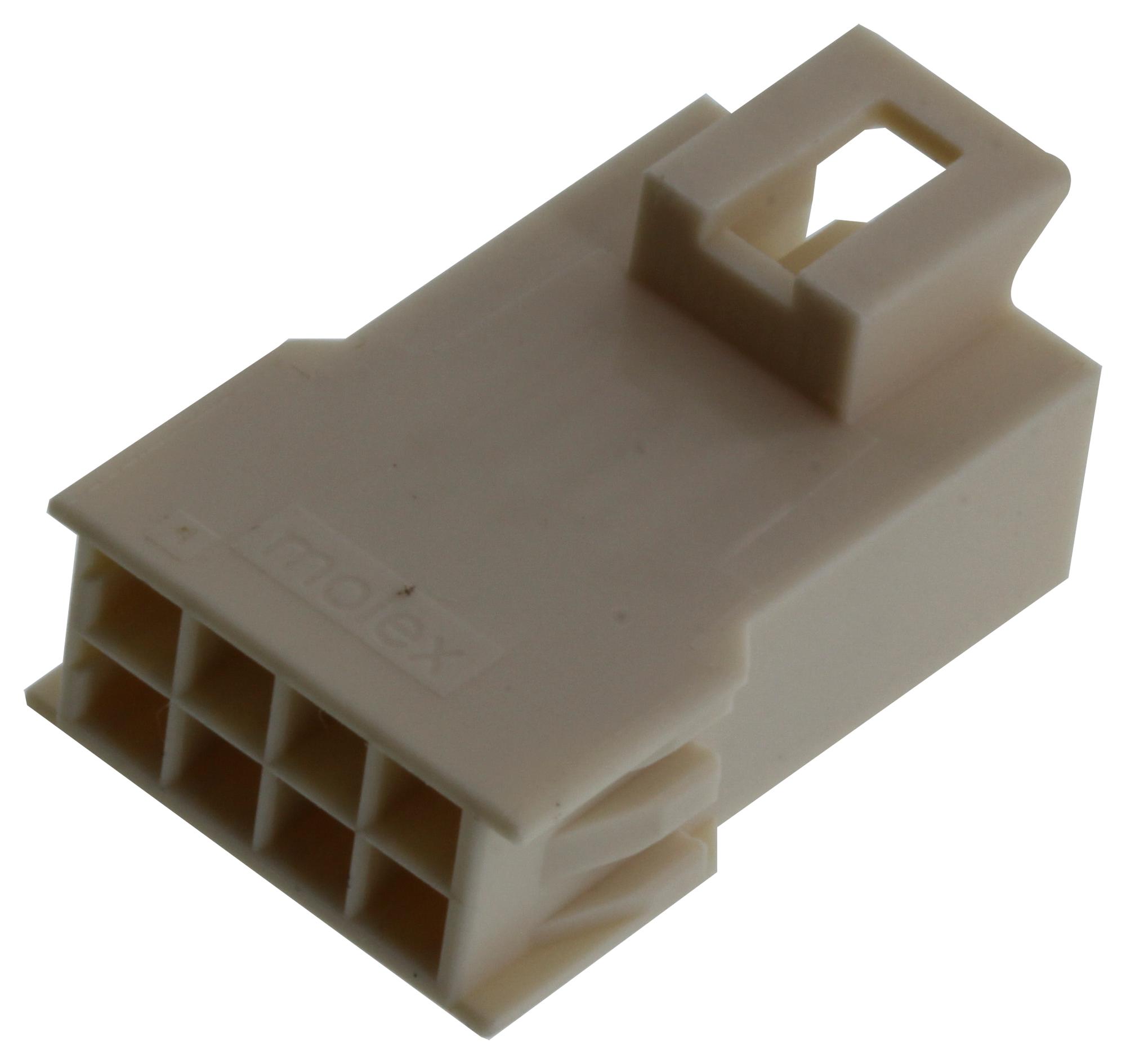

MOLEX 2014442108 Power Connector
Nano-Fit Power Connectors are compact, fully isolated, and feature keying options with color-coded indicators to prevent cross-mating. They deliver reliable electrical performance with a low mating force, supporting high-density PCB designs and quick assembly. Suitable for diverse applications such as consumer appliances, automotive, aerospace, and industrial equipment, these connectors ensure robust contact retention, long-term durability, and enhanced signal integrity. Their small footprint and optional terminal position assurance make them ideal for space-constricted, high-reliability environments with multiple circuit needs.
MOLEX 2014442108 Power Connector Specifications:
- Voltage (Max): 250V
- Current (Max): 6.54A
- Contact Resistance: 10 milliohms over life
- Dielectric Withstanding Voltage: 1500V
- Insulation Resistance: 1000 Megohms
- Contact Insertion Force: 2.5N
- Contact Retention to Housing: 27N
- Mating Force: 3N
- Unmating Force: 3N
- Durability: 20 Tin cycles, 50 Gold cycles
- Housing: Receptacle—Nylon UL 94V-0; Header—LCP UL 94V-0
- Contact Material: High-Conductivity Copper
- Plating: Contact area—Tin or 381) Gold; Solder Tail—Tin; Underplate—Nickel
- PCB Thickness: 1.60mm and 2.40mm
- Operating Temperature: -40°C to +105°C (Tin), -40°C to +115°C (Gold)
Buy the Molex 2014442108 – Reliable High-Density Power Connector for Industrial Applications
Purchase Molex Power Connectors online for your industrial, automotive, or consumer electronic projects. These compact, fully isolated connectors feature keying options and color coding, preventing cross-mating and ensuring correct assembly. Designed to deliver reliable electrical performance with low mating force, they support high circuit density and space-saving PCB layouts. Their durable contacts and optional terminal position assurance enhance long-term reliability. Ideal for applications requiring secure connections, fast assembly, and optimal signal integrity, these connectors are available for quick online ordering, ensuring your project stays on schedule.
Get Molex 2014442108 today—built for precision, space-saving design, and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 2014442108?
You can click on the BUY or RFQ button to purchase 2014442108 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2014442108?
You can download the 2014442108 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2014442108?
MOLEX
