MOLEX 1200270152 Nano-Change M8 Cordset

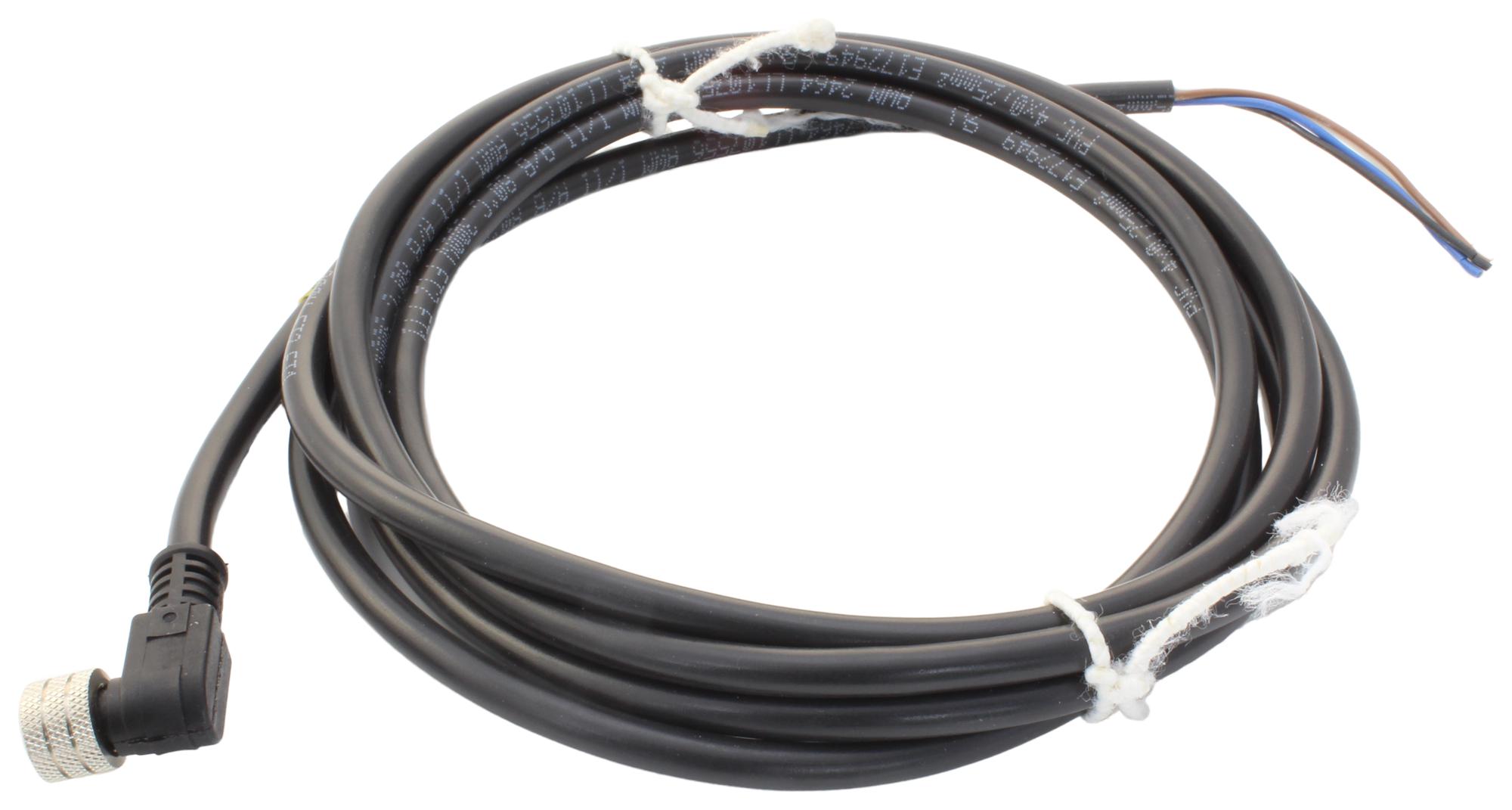

The Nano-Change M8 single-ended cordset features a 4-pole female connector at 90° to a pigtail, with a 2.0-meter PVC cable in black. Designed for industrial applications, it offers IP67 protection, ensuring durability in harsh environments. The connector uses copper alloy contacts with nickel plating, providing reliable electrical performance up to 3A and 30V. Suitable for Europe, it operates within -25°C to +80°C temperature range, with UL certification. Its compact design and high-quality materials make it an ideal choice for automation and sensor connections.
MOLEX 1200270152 Nano-Change M8 Cordset Specifications:
- Connector Type: Nano-Change M8, single-ended, female 90° to pigtail
- Poles: 4
- IP Rating: IP67
- Cable Length: 2.0m (6.56')
- Cable Diameter: N/A
- Cable Material: PVC
- Connector Material - Contact: Copper Alloy
- Contact Plating: Gold
- Material - Connector Body: Nickel-plated Brass
- Material - Cable Jacket: PVC, color black
- Temperature Range: -25°C to +80°C
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 30V
- Agency Certification: UL
- Region: Europe
- Gender: Female to Pigtail
- Coupling Style: Threaded
- Keyway: A-coded
Buy the Buy Molex Nano-Change M8 Part Number 1200270152 Online
Order the Molex Nano-Change M8 Cordset now to ensure reliable industrial automation connections. This 4-pole female to pigtail cordset features a durable 2-meter PVC cable, IP67 rated for harsh environments, and UL certification for safety. Designed for ease of installation, it operates effectively between -25°C and +80°C, ensuring performance under demanding conditions. Made with high-quality materials, including nickel-plated brass contacts and gold plating, it provides consistent electrical performance, making it an essential component for automation systems.
Get Molex Nano-Change M8 Part Number 1200270152 today—built for reliability in industrial automation and sensor connections.
