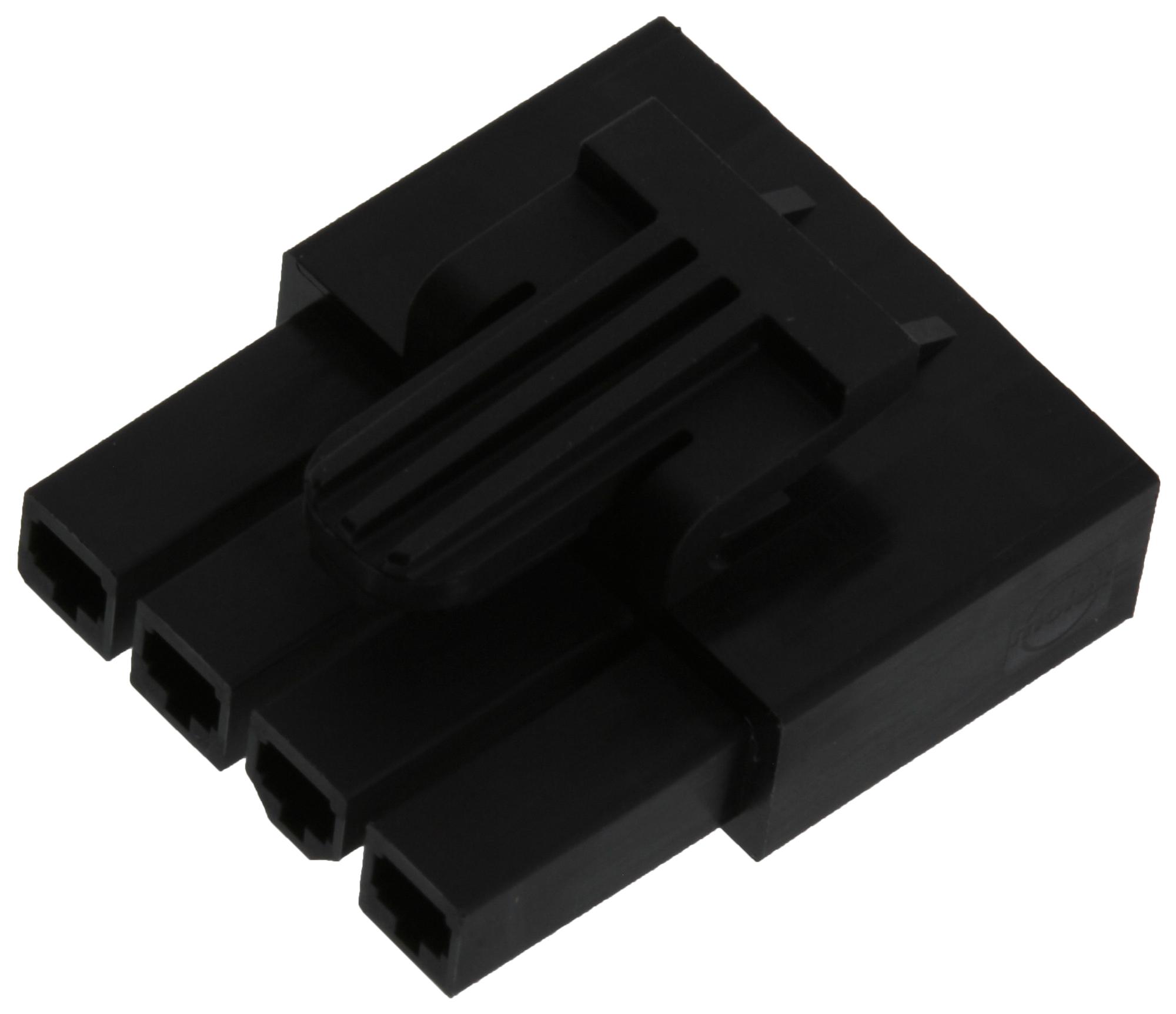

MOLEX 2004531004 Mini-Fit Sigma Receptacle Housing
The Mini-Fit Sigma Receptacle Housing with 4.20mm pitch offers a reliable power connection solution for wire-to-board applications. Designed with a single row configuration and glow-wire capability, it supports up to 4 circuits in a durable nylon body. Suitable for operating temperatures from -40°C to +105°C, it is RoHS and REACH compliant, halogen-free, and suitable for various power distribution needs. Its keying and locking features ensure secure mating with compatible Mini-Fit Jr. and TPA2 connectors, making it ideal for industrial and consumer electronics requiring secure, high-current connections.
MOLEX 2004531004 Mini-Fit Sigma Receptacle Housing Specifications:
- Number of Circuits: 4
- Color - Resin: Black
- Gender: Receptacle
- Glow-Wire Capable: Yes
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Material - Resin: Nylon
- Net Weight: 1.520 g
- Number of Rows: 1
- Packaging Type: Bag
- Operating Temperature Range: -40°C to +105°C
- RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free: No
- Mates With: Mini-Fit Jr. Plug Housing and Mini-Fit TPA2 Plug Housing
- Use With: Mini-Fit TPA2 Crimp Terminal and Mini-Fit Sigma TPA Retainer
Buy the Molex Series Mini-Fit Sigma Receptacle Housing: 2004531004
Secure your projects with the Mini-Fit Sigma power receptacle housing from Molex, featuring a 4.20mm pitch, glow-wire capability, and robust nylon construction. Designed for reliable power distribution, it supports up to 4 circuits in a single row configuration. Operating efficiently across a temperature range of -40°C to +105°C, it is RoHS and REACH compliant, halogen-free, and compatible with Mini-Fit Jr. and TPA2 connectors. Ideal for industrial, electronic, and consumer applications requiring durable, high-current power connections.
Order your Molex Series Mini-Fit Sigma Receptacle Housing 2004531004 today and ensure high-quality, secure power connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2004531004?
You can click on the BUY or RFQ button to purchase 2004531004 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2004531004?
You can download the 2004531004 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2004531004?
MOLEX
