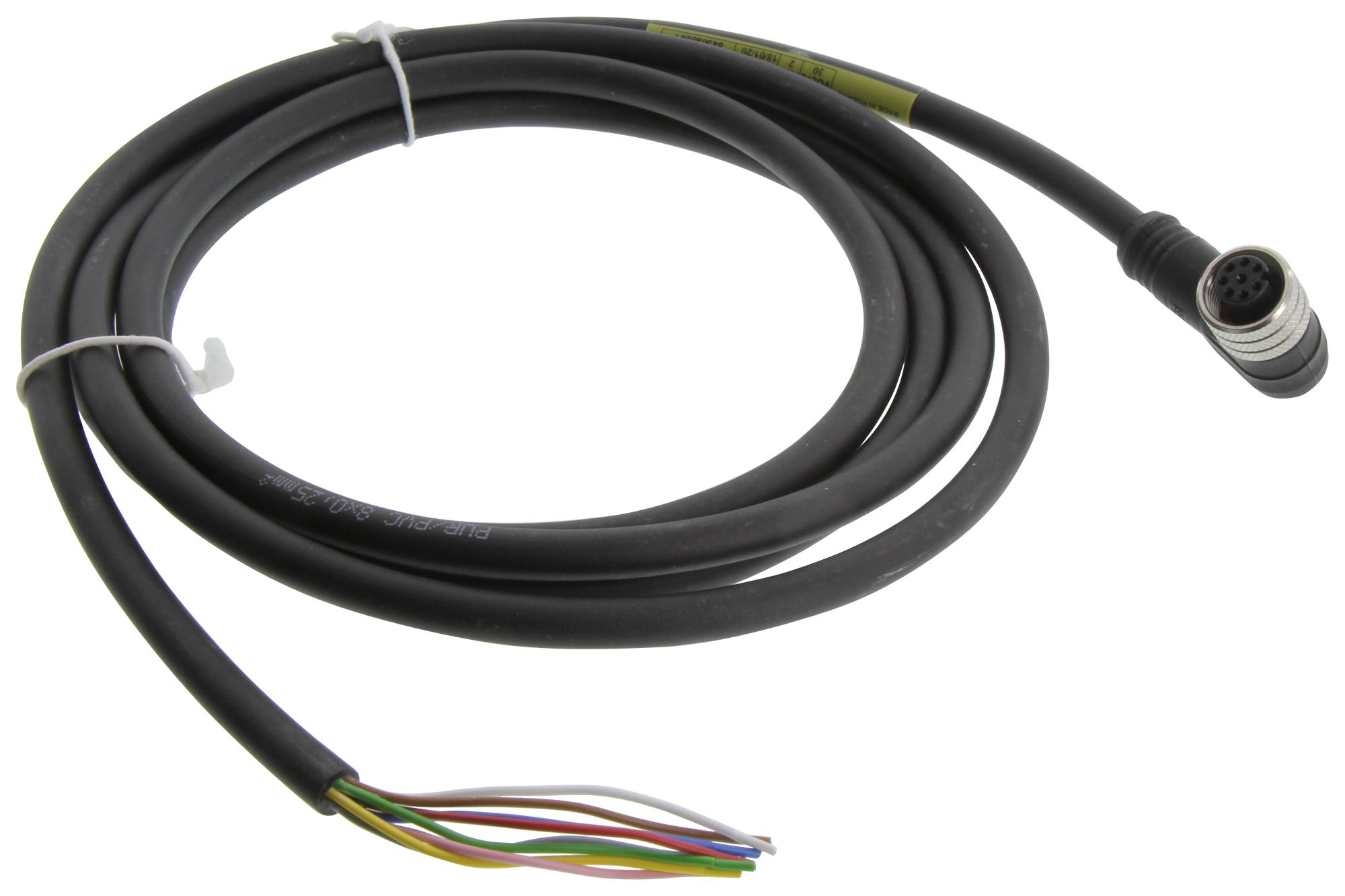

MOLEX 1200650960 Micro-Change M12 Cordset
The Micro-Change M12 Single-Ended Cordset offers reliable connection in industrial automation and sensor applications. Featuring an 8-pole female connector (90°) to pigtail design, it utilizes PUR/PVC cable with a length of 2.0 meters. IP67 rated for dust and water resistance, it is constructed with copper alloy contacts, nickel-plated brass coupling nuts, and a PUR connector body. Operating within -30°C to +80°C, it supports up to 2.0A current and 30V voltage, making it a durable and versatile component for harsh environments.
MOLEX 1200650960 Micro-Change M12 Cordset Specifications:
- Connector Type: Micro-Change (M12), Female, 90° to Pigtail
- Poles: 8
- Cable Length: 2.0 meters
- Cable Diameter: 6.70mm
- Cable Jacket Material: PUR/PVC
- Connector Body Material: PUR
- Coupling Nut Material: Nickel-plated Brass
- Operating Temperature Range: -30°C to +80°C
- Electrical Ratings: 2.0A, 30V
- IP Rating: IP67
- Keyway Configuration: Single
- Gender: Female to Pigtail
- Material - Contact: Copper Alloy
- RoHS & REACH Compliant, Halogen-Free
- RoHS Status: Compliant
- UL Listed: No
- Certifications: IP67
Buy the Molex Series 120065 Micro-Change M12: 1200650960
Enhance your automation setup with the Molex Micro-Change M12 cordset, featuring 8 poles, IP67 protection, and a durable PUR/PVC cable. Designed for harsh industrial environments, it provides a secure connection with a 2-meter length and a threaded coupling style. This dependable component supports up to 2.0A and 30V, suitable for sensor and automation applications. Easy to install and RoHS compliant, it offers excellent durability, corrosion resistance, and waterproof properties, making it a perfect choice for demanding industrial systems.
Order your Molex Series 120065 Micro-Change M12 single-ended cordset today and ensure reliable connections in your industrial automation projects.
