MOLEX 1200652266 industrial cordset

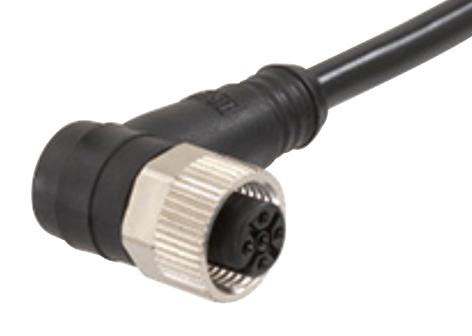

The Micro-Change M12 cordset features a single-ended female connector with a 90° pigtail design, 4 poles, and unshielded WSOR cable, suitable for industrial automation. Constructed with durable brass contacts and nickel plating, it offers IP67 ingress protection and operates within -25°C to +85°C. The 10-meter black cable has a 5.10mm diameter, providing reliable connectivity for industrial sensors and equipment. UL certified with a compact design, this cordset is ideal for automation, machinery, and control applications demanding robust, high-quality connections.
MOLEX 1200652266 industrial cordset Specifications:
- IP Rating: IP67
- Connector End A: Female (90° Pigtail)
- Poles: 4
- Cable Diameter: 5.10mm (.201 inch)
- Cable Length: 10.0m (32.81 ft)
- Cable Jacket: Black, TPU material
- Connector Material: Nickel-plated Brass
- Operating Temperature Range: -25°C to +85°C
- Wire Size AWG: 22
- Electrical Current: 4.0A
- Maximum Voltage: 250V
- Material - Cable Jacket: TPU
- Material - Connector Body: Brass
- Material - Coupling Nut: Knurled Hexnut, Threaded
- Certification: UL Listed
Buy the Molex 1200652266 – Reliable Industrial Cordset for Automation Applications
Enhance your automation setup with this durable M12 industrial cordset featuring a female connector, 4 poles, 10-meter length, and IP67 rating. Crafted from high-quality nickel-plated brass with TPU cable jacket, it ensures excellent environmental resistance and reliable data transmission in demanding industrial environments. Operating across -25°C to +85°C, this UL-listed cordset is perfect for sensors, machinery, and automation systems requiring rugged, sealed connections. Order online now for fast, secure delivery and seamless integration into your control system.
Buy Molex 1200652266 now and experience unmatched reliability and performance in industrial connectivity with durable, sealed M12 cordsets.
Frequently Asked Questions
Where can I buy MOLEX 1200652266?
You can click on the BUY or RFQ button to purchase 1200652266 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1200652266?
You can download the 1200652266 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1200652266?
MOLEX
