MOLEX 2164001042 Datasheet & Stock

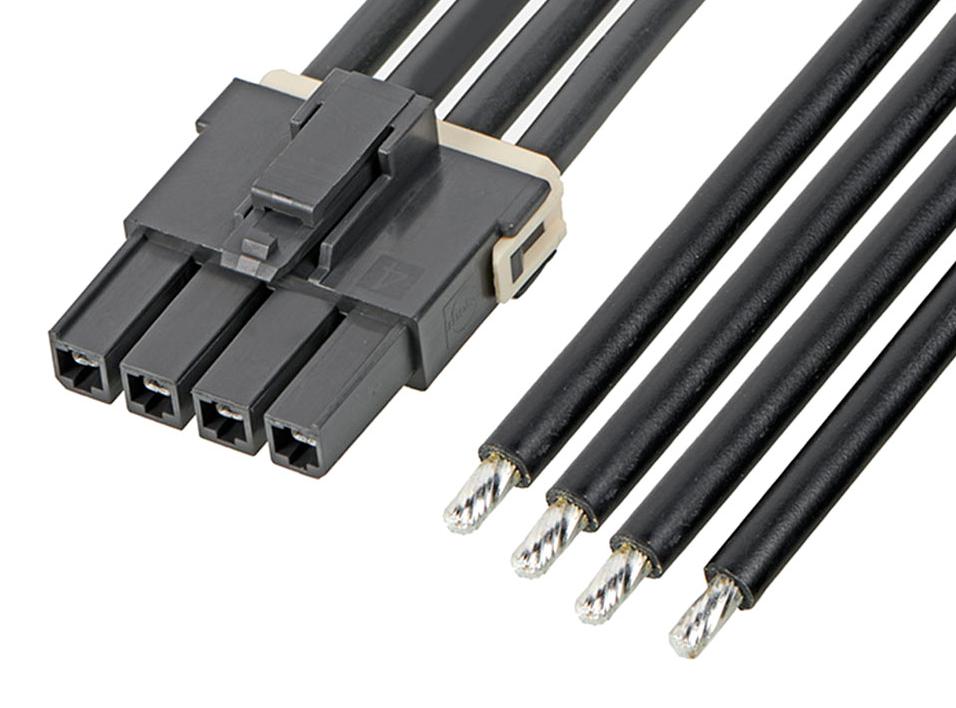

This Mega-Fit female-to-Mega-Fit female off-the-shelf cable assembly offers a current rating of 25A and is available in various lengths. It features a compact connector with polarizing and unique keying to prevent mis-mating and protect terminals, ensuring safety against electrical arcing. The assembly incorporates a new latch design for superior retention and low-mating force, along with an individually polarized header supporting keying features. Suitable for applications in commercial vehicles, home appliances, industrial equipment, and telecommunications, it includes a TPA for terminal retention, a locking mechanism for secure connection, and complies with V0 and glow-wire European standards. Constructed with a nylon housing, high conductivity copper contacts, and tin plating, it is UL and CSA certified. Designed for use with 12 AWG wire, it supports a maximum voltage of 600V AC/DC, operates within -40°C to +105°C, with a maximum mating force of 6.8N and durability up to 25 cycles.

View 2164001042Datasheet [pdf]
