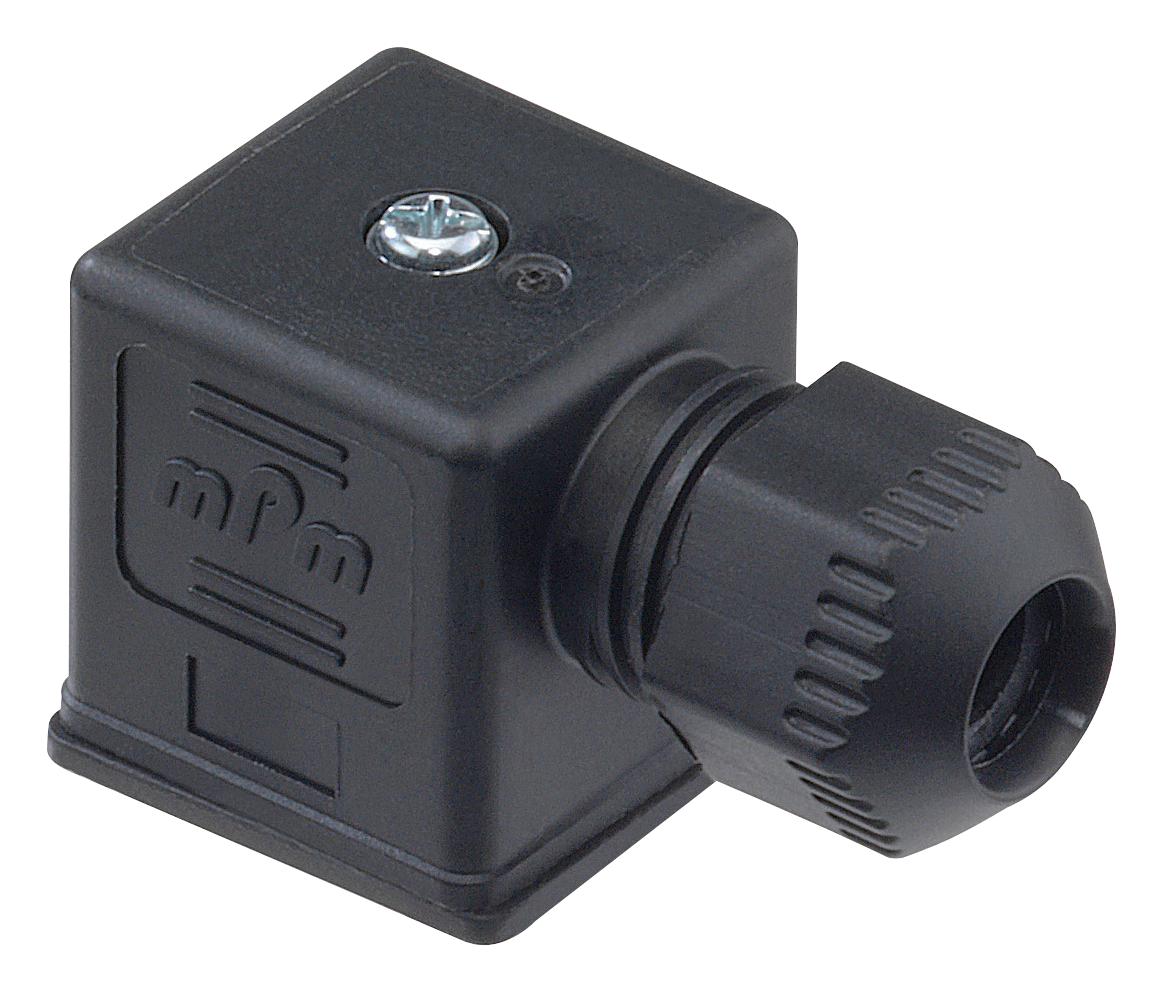

MOLEX 1212010004 Industrial Valve Connector
The mPm DIN Valve Connector is a robust, field-attachable connector designed for industrial applications. With IP65/IP67 ratings, it delivers reliable performance in harsh environments. Features include an external thread coupling, 3 poles plus ground terminal, and a 90° angle orientation for ease of installation. Made with brass contact and polyamide body, it operates within -40°C to +90°C temperature range and supports up to 250V AC/DC and 16A current per contact. Suitable for automation and valve control systems, its durable construction ensures long-term dependable connections in demanding industrial settings.
MOLEX 1212010004 Industrial Valve Connector Specifications:
- Form: A
- IP Rating: IP65, IP67
- Material - Contact: Brass
- Material - Connector Body: Polyamide
- Material - Plating: Mating Silver
- Coupling Type: External Thread
- Orientation: 90° Angle
- Poles: 3 plus Ground Terminal
- Voltage - Maximum: 250V AC/DC
- Current - Maximum per Contact: 16.0A
- Operating Temperature Range: -40°C to +90°C
- Pitch - Mating Interface: 18.00mm
- Gender: N/A
- Cable Diameter: N/A
- Wire Size: N/A
Buy the Molex 1212010004 – Reliable Industrial Valve Connector for Automation Systems
Enhance your industrial automation systems with the Molex 1212010004 valve connector. Designed for demanding environments, this field-attachable connector features IP65/IP67 ratings, external thread coupling, and a 90° angle for easy installation. Made from durable brass and polyamide, it supports up to 250V AC/DC and 16A per contact. Its robust construction ensures long-lasting reliable connections in valve control, automation, and manufacturing applications. Order online now for fast delivery and trusted quality your projects depend on.
Order your Molex series 121201 valve connector today and ensure secure, durable connections in your industrial automation projects with high current capacity and environmental resilience.
