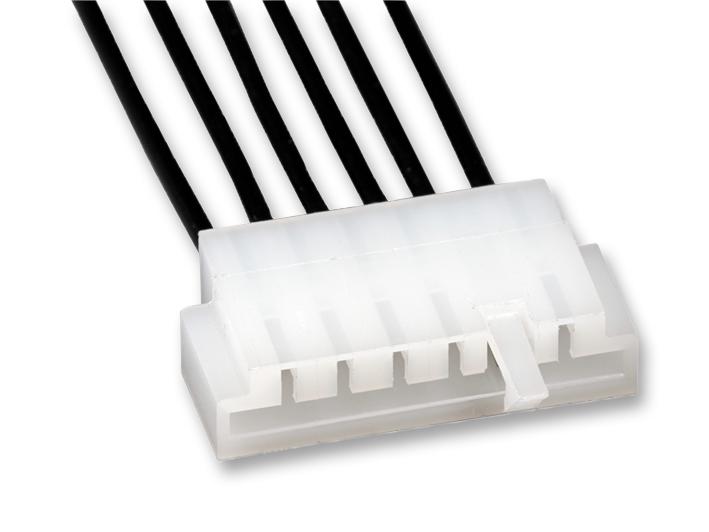

MOLEX 1721590605 EdgeMate Power Connector
The EdgeMate Wire-to-Edge-Card Power Connector is a high-quality, 3.96mm pitch connector designed for reliable power connections in electronic systems. Made from durable nylon 6/6 with UL94-V2 flame rating, it features a positive lock for secure connection, accommodates 5 circuits, and supports up to 7.0A current at 250V. With a right-angle orientation, it optimizes space and ensures easy mating with edge card PCB interfaces. Suitable for applications requiring durable, high-performance power connectors with enhanced safety and compliance standards.
MOLEX 1721590605 EdgeMate Power Connector Specifications:
- Pitch: 3.96mm
- Number of Circuits: 5
- Maximum Current per Contact: 7.0A
- Maximum Voltage: 250V
- Material: Nylon 6/6
- Flammability: UL94-V2
- Color: White
- Entry Angle: 90° angle
- Durability: Up to 25 mating cycles
- Operating Temperature Range: -40°C to +105°C
- PCB Thickness - Recommended: 1.57mm
- Mating Style: Edgecard to wire
- Certification: UL Listed, RoHS Compliant, China RoHS, Low-Halogen
Buy the Buy Molex EdgeMate Wire-to-Edge-Card Power Connector Part Number 1721590605 Online
Purchase the Molex EdgeMate Power Connector online today for secure, high-performance power connections in your electronic applications. Featuring a 3.96mm pitch, UL94-V2 flame rating, nylon body, and positive locking mechanism, it ensures safe, durable, and reliable performance. Suitable for edge card PCB interfaces, it supports 5 circuits at up to 7A and 250V. Easy to install with a right-angle design, this connector meets industry standards for safety and quality. Order now to enhance your electronic system’s power connectivity.
Get Molex 1721590605 today—built for reliable power distribution with high durability and UL certification.
Frequently Asked Questions
Where can I buy MOLEX 1721590605?
You can click on the BUY or RFQ button to purchase 1721590605 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1721590605?
You can download the 1721590605 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1721590605?
MOLEX
