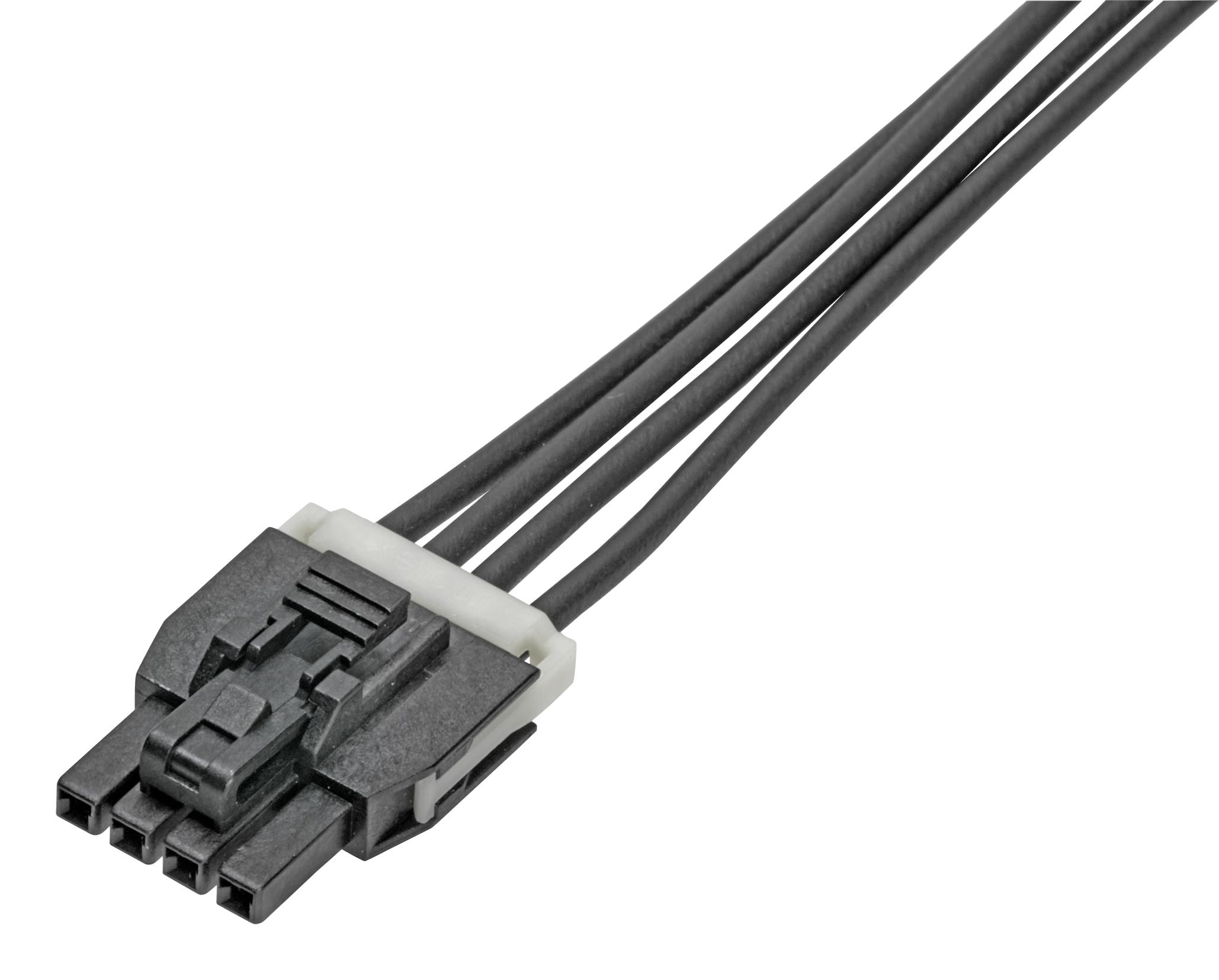

MOLEX 1451300410 Nano-Fit Cable Assembly
The MOLEX 145130-0410 is a Nano-Fit-to-Nano-Fit off-the-shelf (OTS) cable assembly designed for wire-to-board power applications. This dual-ended assembly features a 1.0m length, 4 circuits, and a black resin overmold. Constructed with high conductivity copper and matte tin plating, it offers reliable performance with a maximum current of 6.5A and a voltage of 250V AC (RMS). It is RoHS compliant and suitable for various industrial and commercial applications requiring compact and efficient power connections.
MOLEX 1451300410 Nano-Fit Cable Assembly Specifications:
- Series: 145130
- Application: Power, Wire-to-Board
- Assembly Configuration: Dual Ended
- Connectors: Connector to Connector
- Overmolded: No
- Overview: Nano-Fit Power Connectors
- Cable Length: 1.0m
- Circuits Loaded: 4
- Color: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Net Weight: 29.234/g
- Packaging Type: Bag
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Mates With: Nano-Fit Headers 105309, 105311, 105320
- Termination Interface: Crimp or Compression
