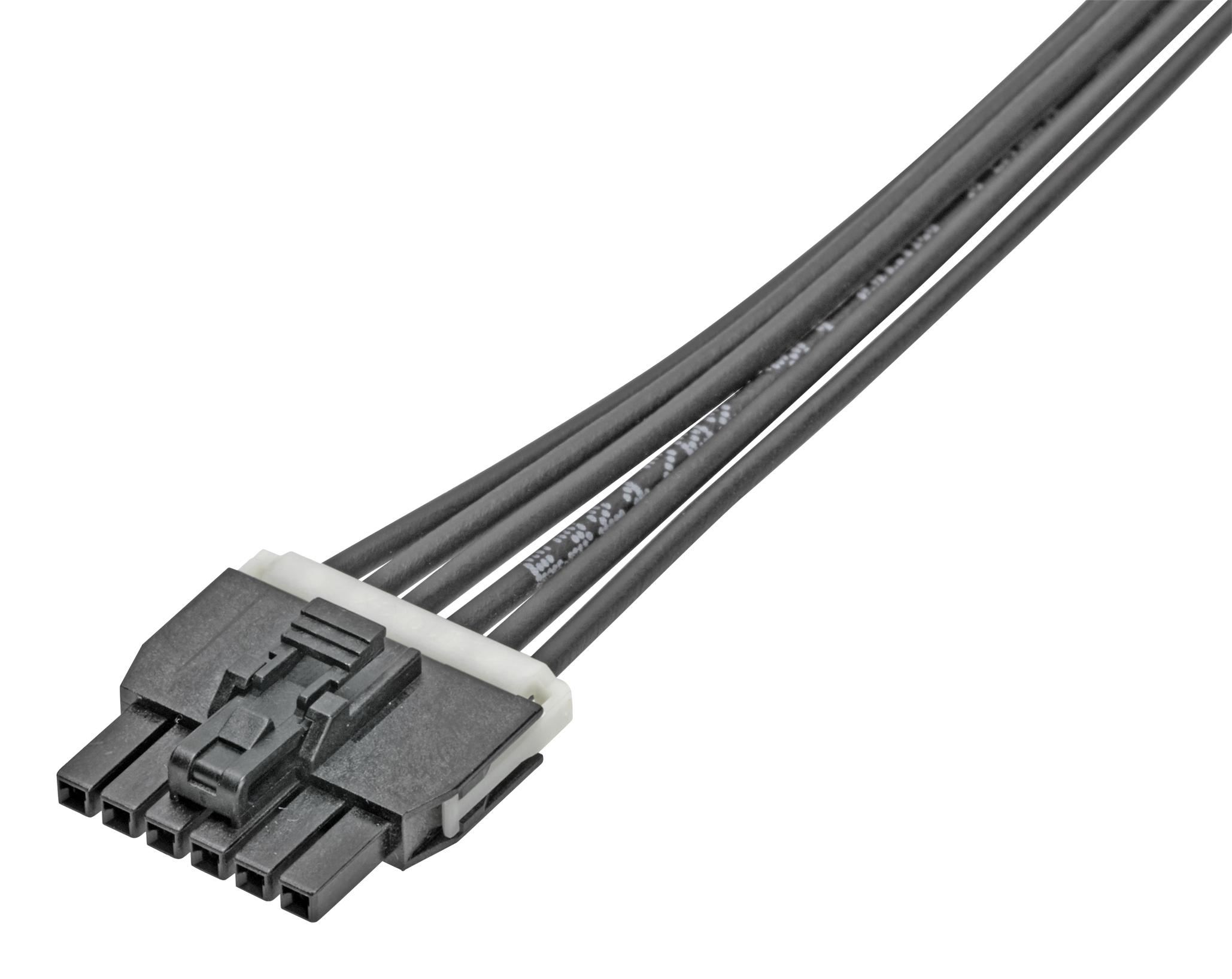

MOLEX 1451300603 Nano-Fit Cable Assembly
The MOLEX 145130-0603 is a Nano-Fit power connector cable assembly designed for wire-to-board applications. This dual-ended assembly offers a compact and reliable connection solution with a 300mm length and 6 circuits. Constructed with high-conductivity copper and a matte tin plating, it ensures efficient power transfer. The assembly is RoHS compliant and features a black nylon resin overmold for durability and insulation. It is ideal for applications requiring a secure and space-saving power connection.
MOLEX 1451300603 Nano-Fit Cable Assembly Specifications:
- Series: 145130
- EU ELV: Not Relevant
- Application: Power, Wire-to-Board
- Assembly Configuration: Dual Ended
- Connector Type: Nano-Fit-to-Nano-Fit
- Overmolded: No
- Overview: Nano-Fit Power Connectors
- REACH SVHC: Not Contained
- Cable Length: 300.00mm
- Circuits Loaded: 6
- Color: Black
- Gender: Female-Female
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Net Weight: 15.670/g
- Packaging Type: Bag
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Mates With: Nano-Fit Headers 105309, 105311, 105327
- Single Ended: No
- Lock to Mating Part: Yes
Buy the 145130-0603 MOLEX Nano-Fit Cable Assembly | myMectronic
Purchase the MOLEX 145130-0603 Nano-Fit Cable Assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1451300603?
You can click on the BUY or RFQ button to purchase 1451300603 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1451300603?
You can download the 1451300603 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1451300603?
MOLEX
