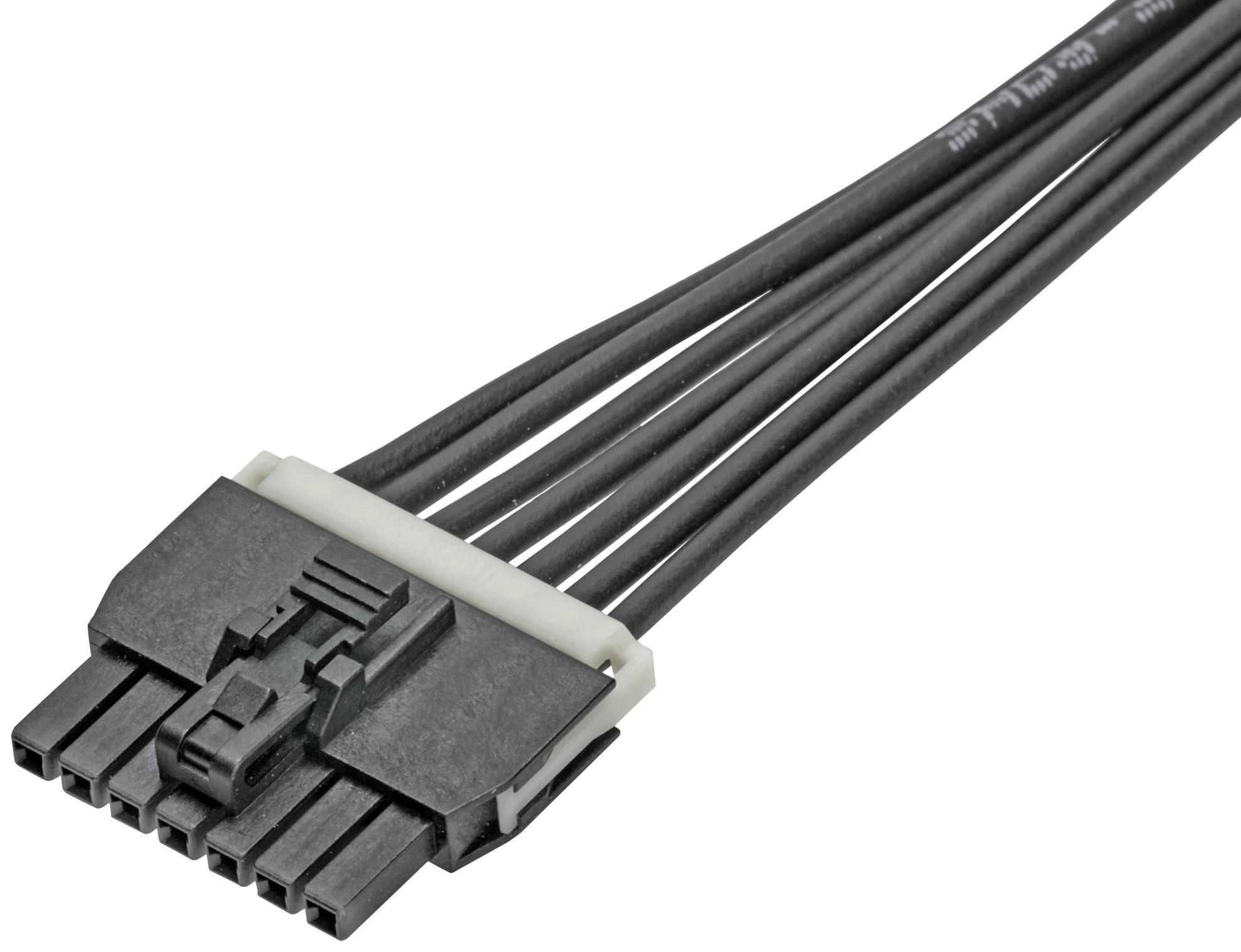

MOLEX 1451300710 Nano-Fit OTS Cable Assembly
The MOLEX 145130-0710 Nano-Fit power connector cable assembly provides a robust and compact solution for power transmission in various industrial applications. Designed as a Nano-Fit-to-Nano-Fit OTS (Off-the-Shelf) assembly, it simplifies integration and reduces design time. The cable assembly features a 1.0m length, 7 circuits, and utilizes high-conductivity copper with matte tin plating for reliable electrical contact. Its black nylon resin housing and dual-ended female connectors ensure durability and ease of use. Compliant with RoHS and REACH standards, this assembly is suitable for applications requiring secure and efficient power delivery.
MOLEX 1451300710 Nano-Fit OTS Cable Assembly Specifications:
- Overview: Nano-Fit Power Connectors
- Series: 145130
- Application: Power, Wire-to-Board
- Configuration: Dual Ended
- Connectors: Nano-Fit-to-Nano-Fit
- Overmolded: No
- Length: 1.0m
- Circuits: 7
- Color: Black
- Gender: Female-Female
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Net Weight: 50.904/g
- Mates With: Nano-Fit Headers 105309, 105311, 105332
