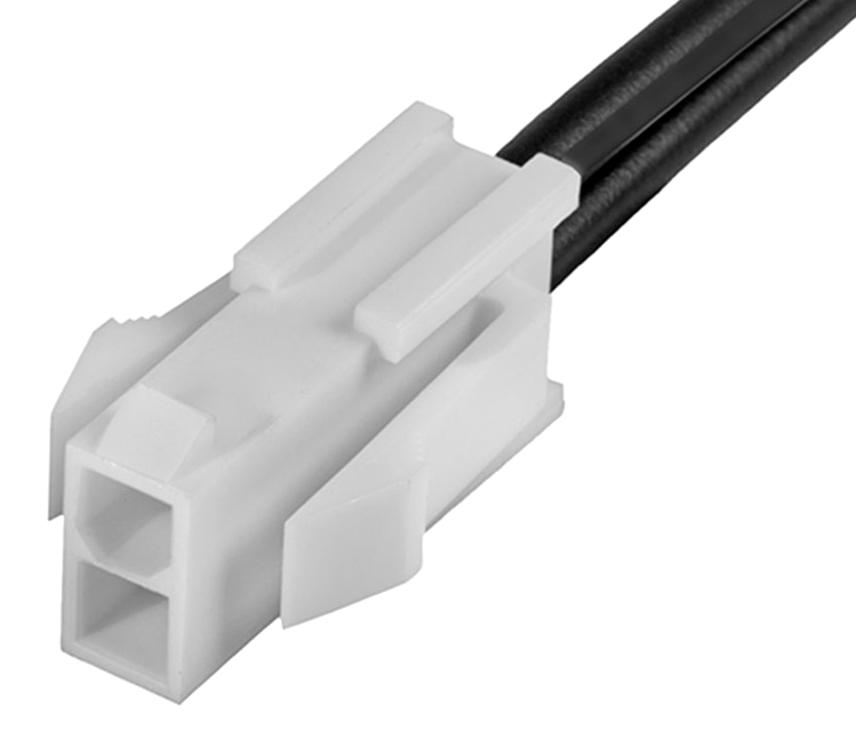

MOLEX 2153261021 Mini-Fit Jr. Cable Assembly
The MOLEX 215326-1021 is a Mini-Fit Jr. female-to-pigtail off-the-shelf cable assembly designed for power applications. With a 150mm length, dual-row configuration, and tin plating, this assembly provides a secure and reliable connection for wire-to-board and wire-to-wire applications. Constructed with brass and nylon materials, it supports up to 9.0A of current and 600V of voltage, making it suitable for a wide range of industrial and commercial uses. Its robust design and easy integration make it a preferred choice for power distribution and connectivity.
MOLEX 2153261021 Mini-Fit Jr. Cable Assembly Specifications:
- Product Family: Cable Assemblies
- Series: 215326
- Application: Power, Wire-to-Board, Wire-to-Wire Assembly
- Configuration: Single Ended
- Connector: Mini-Fit Jr.-to-Pigtail
- Cable Length: 150.00mm
- Circuits (Loaded): 2
- Color: Black
- Material - Metal: Brass
- Material - Plating (Mating): Tin
- Material - Plating (Termination): Tin
- Material - Resin: Nylon
- Net Weight: 8.144/g
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.889µm
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- UPC: 193264589944
- Mates With: ['5559', '5566', '5566', '5569', '5569', '43810', '44068', '44281', '87427', '42404', '42440']
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
Buy the 215326-1021 MOLEX Mini-Fit Jr. Cable Assembly | myMectronic
Purchase the MOLEX 215326-1021 Mini-Fit Jr. Cable Assembly securely and reliably through myMectronic.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2153261021?
You can click on the BUY or RFQ button to purchase 2153261021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153261021?
You can download the 2153261021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153261021?
MOLEX
