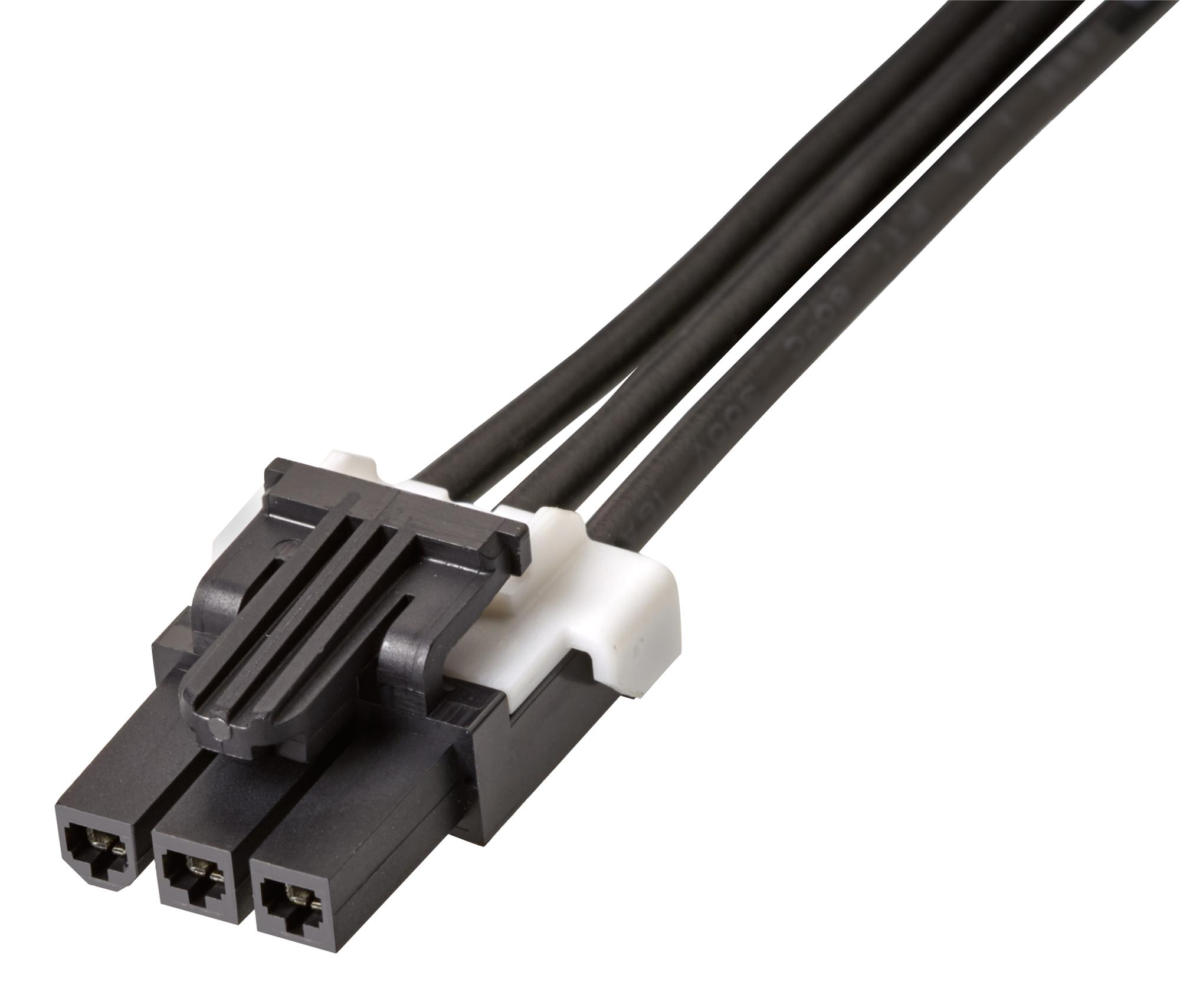

MOLEX 1451350303 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0303 is an Off-the-Shelf (OTS) Discrete Cable Assembly designed for reliable power and signal transmission in various applications. It connects two Mini-Fit TPA2 connectors with a 300mm cable length and 3 circuits. The assembly utilizes phosphor bronze terminals with tin plating, ensuring excellent conductivity and corrosion resistance. The black nylon resin overmold provides insulation and protection for the internal wiring. This cable assembly is suitable for wire-to-board and wire-to-wire connections in industrial equipment, automotive systems, and other demanding environments.
MOLEX 1451350303 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2
- cable_length: 300.00mm
- circuits_loaded: 3
- color_resin: Black
- material_metal: Phosphor Bronze
- plating_mating: Tin
- plating_termination: Tin
- material_resin: Nylon
- net_weight: 18.831/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 200471, 200488, 5559, 5566, 5569
- drawing_number: 4000095327-000
