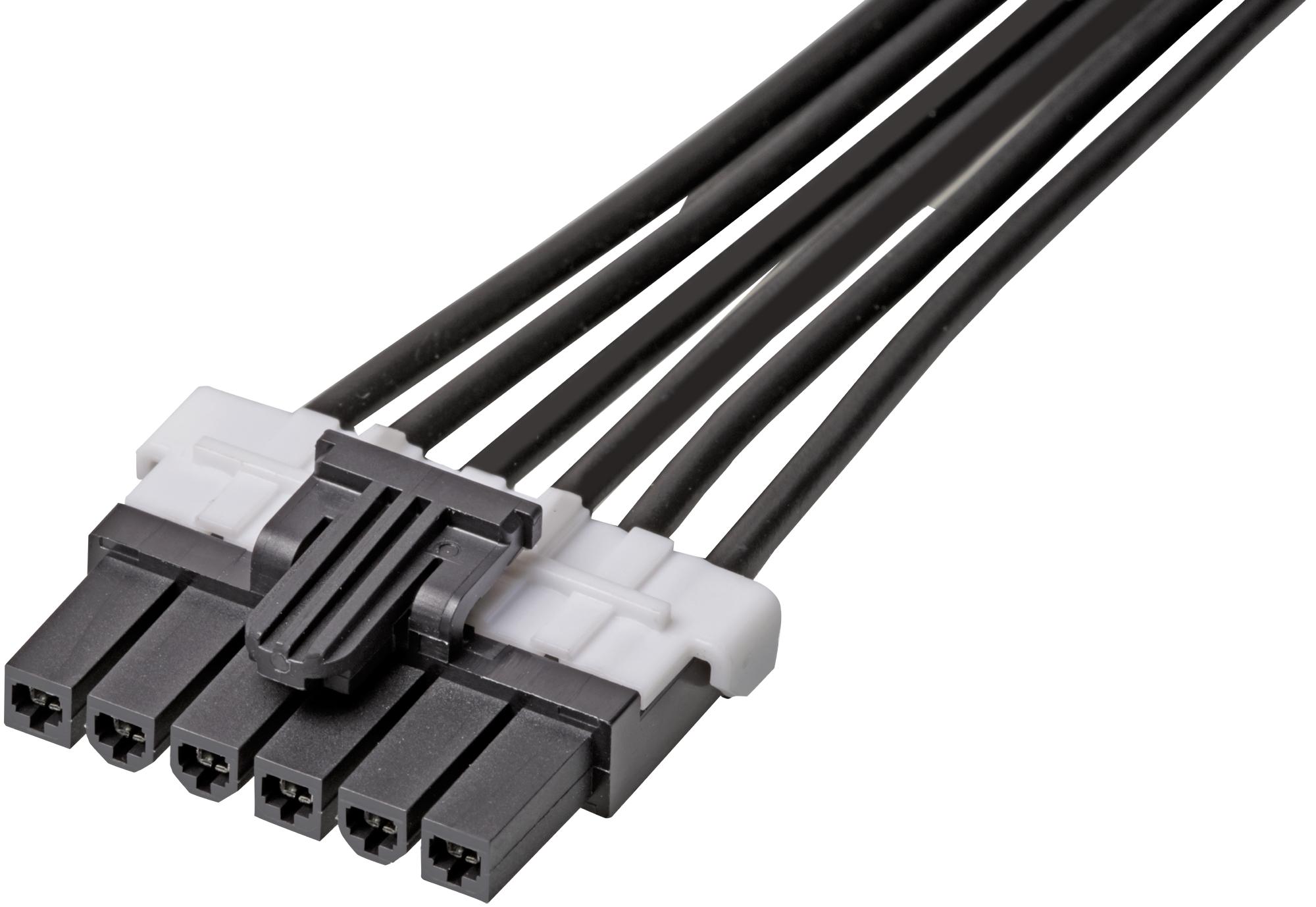

MOLEX 1451350610 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0610 is an off-the-shelf discrete cable assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly utilizes Mini-Fit TPA2 connectors at both ends, ensuring a secure and reliable connection. With a 1.0m length and 6 circuits, it's ideal for applications requiring moderate power transmission and flexible cable routing. The black resin overmolding provides added durability and protection against environmental factors. It is RoHS compliant and features a phosphor bronze material with tin plating for optimal conductivity and corrosion resistance.
MOLEX 1451350610 Mini-Fit TPA2 Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 145135
- application: Power, Wire-to-Board, Wire-to-Wire
- configuration: Dual Ended
- connectors: Connector to Connector
- connector_type: Mini-Fit TPA2
- overmolded: No
- cable_length: 1.0m
- circuits_loaded: 6
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 101.514/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_AWG: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- elv_not_relevant: Not Relevant
- china_roh: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- sales_drawing: 4000095329-000
