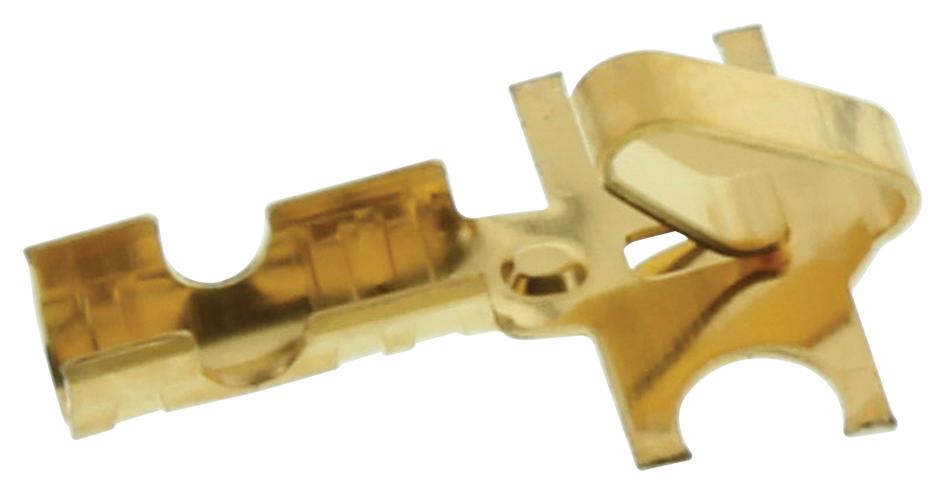

MOLEX 08560109 KK 254 Crimp Terminal
The MOLEX 08-56-0109 KK 254 Crimp Terminal is a crucial component in wire-to-board connectivity systems. Designed for signal applications, this terminal accommodates wire gauges ranging from 22 to 30 AWG. It features a gold mating plating for optimal signal integrity and a nickel underplating for enhanced corrosion resistance. The terminal is supplied on a reel for automated assembly processes, making it suitable for high-volume manufacturing in various industrial and consumer electronics applications. Refer to Molex's official documentation for detailed specifications and application guidelines.
MOLEX 08560109 KK 254 Crimp Terminal Specifications:
- product_family: Crimp Terminals
- series: 2759
- application: Signal, Wire-to-Board Crimp
- gender: Female
- material_metal: Brass
- material_plating_mating: Gold (Au)
- material_plating_termination: Gold (Au)
- plating_min_mating: 0.381µm
- plating_min_termination: 0.051µm
- wire_insulation_diameter_max: 1.57mm
- wire_size_awg: 22, 24, 26, 28, 30
- wire_size_mm2: N/A
- net_weight: 0.064/g
- packaging_type: Reel
- engineering_number: 2759-(550)B
- upc: 800753614222
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per - ED/61/2018 (27 June 2018)
- halogen_free_status: Low-Halogen
- use_with: 2695, 5051
Buy the 08-56-0109 MOLEX KK 254 Crimp Terminal | myMectronic
Purchase the genuine MOLEX 08-56-0109 KK 254 Crimp Terminal securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 08560109?
You can click on the BUY or RFQ button to purchase 08560109 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 08560109?
You can download the 08560109 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 08560109?
MOLEX
