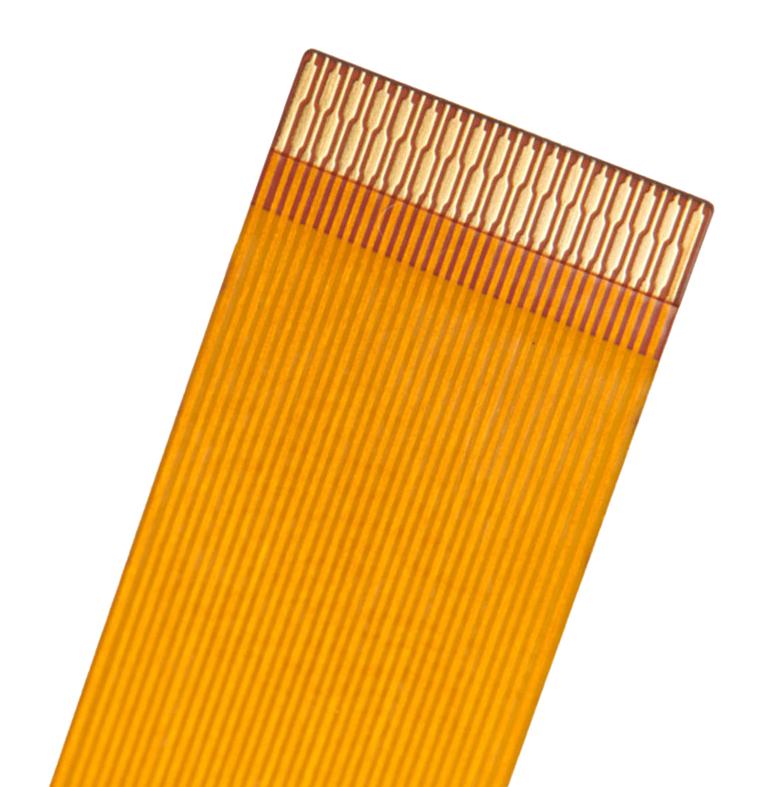

MOLEX 150140421 Premo-Flex FFC Jumper
The MOLEX 15014-0421 is a Premo-Flex Flat-Flexible Circuit (FFC) Cable Jumper designed for connecting flexible circuits. It features a 0.25mm pitch, 21 circuits, and gold plating for reliable signal transmission. The jumper offers a 101.60mm cable length and operates within a temperature range of -40°C to +105°C, making it suitable for various industrial and consumer electronics applications. It is RoHS compliant and part of the 15014 series.
Authorized Distributors
Source:Mouser Electronics
Part No:15014-0421
Stock:320
Inv Date:05-30-2026
Price: Unit price: $2.79
Buy/RFQ:
MOLEX 150140421 Premo-Flex FFC Jumper Specifications:
- product_family: Cable
- series: 15014
- crimp_quality_equipment: Yes
- overview: Premo-Flex Flat-Flexible Circuit (FFC) Cable Jumpers
- product_name_short: Premo-Flex FFC Jumper
- upc: 191130093304
- cable_length: 101.60mm
- circuits_loaded: 21
- plating_mating: Gold
- net_weight: 1.000/g
- packaging_type: Bag
- pitch_mating_interface: 0.25mm
- operating_temperature_range: -40°C to +105°C
- wire_size_awg: N/A
- wire_cable_type: Flat Flex Cable
- current_maximum_per_contact: 0.2A
- voltage_maximum: N/A
- product_specification: 1501400001-000
- sales_drawing: 150140001-000
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- china_rohs_compliance: Not Reviewed
- reach_svhc_compliance: Not Reviewed
- halogen_free_status: Not Reviewed
- mates_with: ['Easy-On FFC/FPC Connector 5020782110', '5020782162', '5033002110']
