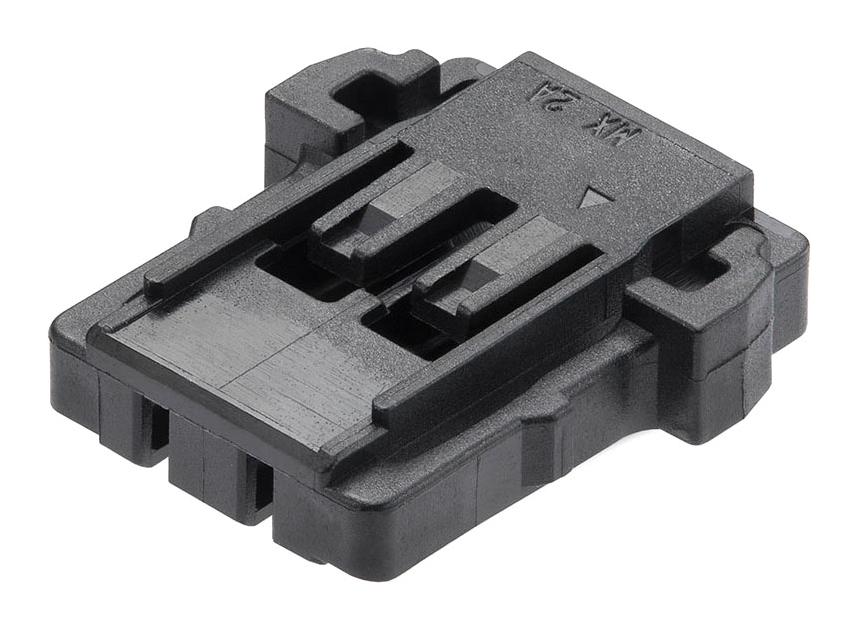

MOLEX 2053410204 Pico-Lock Receptacle Housing
The MOLEX 205341-0204 Pico-Lock Receptacle Crimp Housing is a crucial component in wire-to-board connectivity solutions. Designed with a 2.00mm pitch and accommodating up to 4 circuits, this housing provides a compact and reliable connection. The positive lock feature ensures a secure mating with the corresponding header, preventing accidental disconnections. Constructed from durable polyamide resin and featuring a black finish, this connector is suitable for a range of industrial and consumer electronics applications where space is at a premium and a robust connection is required. It is RoHS compliant and offers low-halogen content for environmentally conscious designs.
MOLEX 2053410204 Pico-Lock Receptacle Housing Specifications:
- product_family: Crimp Housings
- series: 205341
- application: Signal, Wire-to-Board
- circuits_maximum: 4
- color_resin: Black
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Polyamide
- net_weight_mg: 146.370
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface_mm: 2.00
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°
- upc: 191130509997
- halogen_free_status: Low-Halogen
