MOLEX 150140451 Premo-Flex FFC Jumper

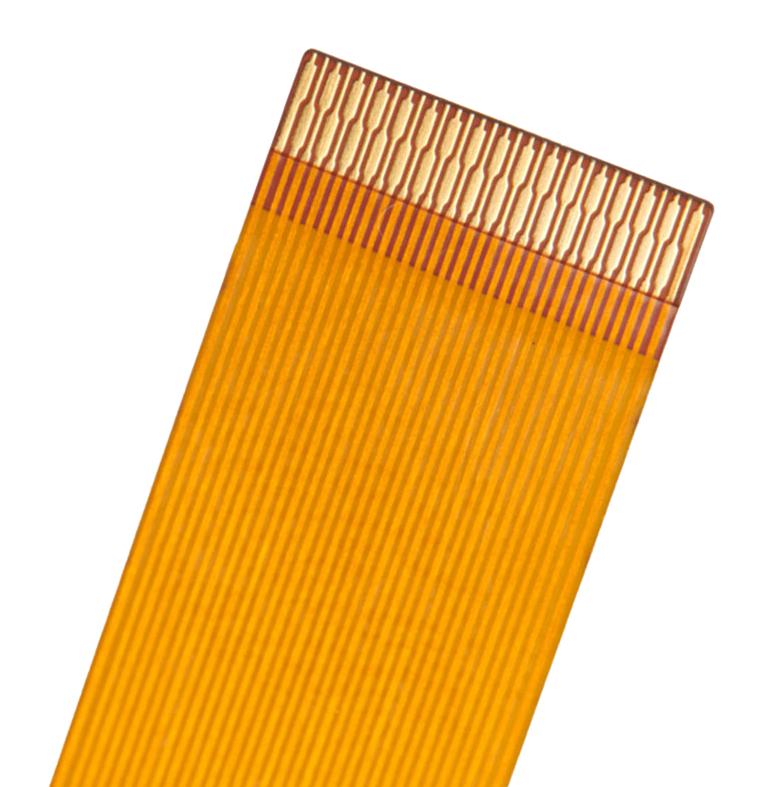

The MOLEX 15014-0451 is a Premo-Flex Flat-Flexible Circuit (FFC) jumper designed for connecting flat flex cables to circuit boards. It features a 0.25mm pitch, 51 circuits, and a 101.60mm cable length, providing flexibility and space-saving capabilities in various electronic devices. The gold plating ensures reliable electrical contact, and the jumper is RoHS compliant for environmentally conscious designs. This component is ideal for applications requiring a secure and compact connection between FFC cables and PCBs.
MOLEX 150140451 Premo-Flex FFC Jumper Specifications:
- Part Number: 0150140451
- Status: Active
- Overview: Premo-Flex Flat-Flexible Circuit (FFC) Cable Jumpers
- Description: 0.25mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 101.60mm Cable Length, Gold (Au) Plating, 51 Circuits
- Product Family: Cable
- Series: 15014
- Crimp Quality Equipment: Yes
- Cable Length: 101.60mm
- Circuits (Loaded): 51
- Material - Plating Mating: Gold
- Net Weight: 1.000/g
- Packaging Type: Bag
- Pitch - Mating Interface: 0.25mm
- Temperature Range - Operating: -40° to +105°C
- Wire Size AWG: N/A
- Wire/Cable Type: Flat Flex Cable
- Current - Maximum per Contact: 0.2A
- Voltage - Maximum: N/A
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
- Mates With: Easy-On FFC/FPC Connector5020785110, 5020785162
