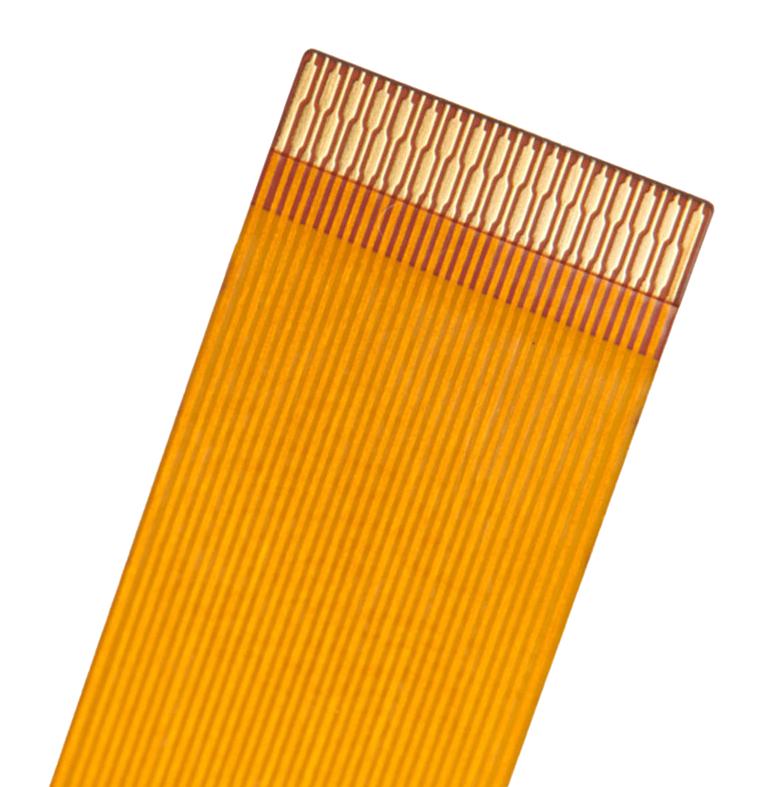

MOLEX 150140453 Premo-Flex FFC Jumper
The MOLEX 15014-0453 is a Premo-Flex Flat-Flexible Circuit (FFC) cable jumper designed for connecting flat cables to circuit boards. It features a 0.25mm pitch, 53 circuits, and gold plating for enhanced conductivity and durability. This jumper is suitable for applications requiring flexible and compact connections, commonly found in consumer electronics, industrial equipment, and automotive systems. Its active lifecycle status ensures availability and ongoing support.
MOLEX 150140453 Premo-Flex FFC Jumper Specifications:
- status: Active
- overview: Premo-Flex Flat-Flexible Circuit (FFC) Cable Jumpers
- description: 0.25mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 101.60mm Cable Length, Gold (Au) Plating, 53 Circuits
- product_family: Cable
- series: 15014
- crimp_quality_equipment: Yes
- product_name: Premo-Flex FFC Jumper
- upc: 191130093519
- cable_length: 101.60mm
- circuits_loaded: 53
- plating_mating: Gold
- net_weight: 1.000/g
- packaging_type: Bag
- pitch_mating_interface: 0.25mm
- temperature_range_operating: -40° to +105°C
- wire_size_awg: N/A
- wire_cable_type: Flat Flex Cable
- current_maximum_per_contact: 0.2A
- voltage_maximum: N/A
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Reviewed
- halogen_free_status: Not Reviewed
- rohs_phalates: Not Contained
- mates_with: Easy-On FFC/FPC Connector 5020785362, 5033005310
- drawing_number: 150140001-000
- product_specification: 1501400001-000
Buy the 15014-0453 MOLEX Premo-Flex FFC Jumper | myMectronic
Purchase the MOLEX 15014-0453 FFC Jumper securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 150140453?
You can click on the BUY or RFQ button to purchase 150140453 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 150140453?
You can download the 150140453 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 150140453?
MOLEX
