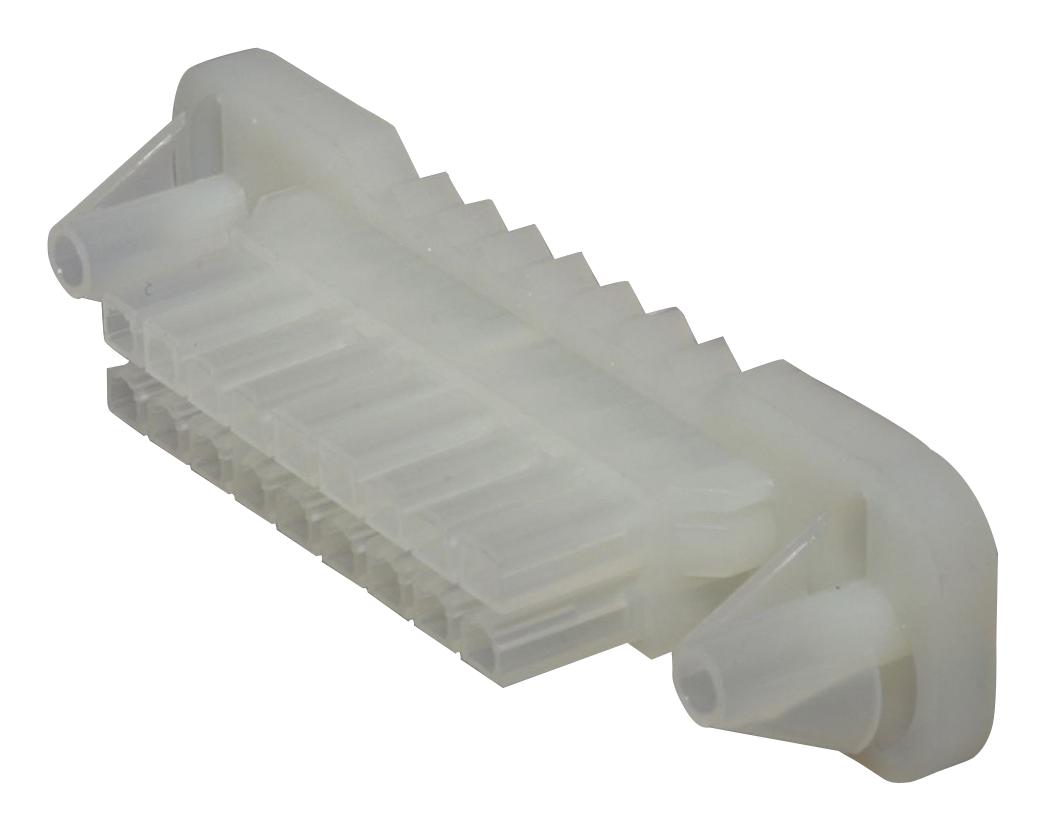

MOLEX 15060180 Mini-Fit BMI Receptacle Housing
The MOLEX 15-06-0180 Mini-Fit BMI Receptacle Housing is a versatile component for connecting power and signal wires in a variety of applications. Constructed from durable PA Nylon 6/6, it offers excellent insulation and mechanical strength. Designed with a 4.20mm pitch and 18 circuits, this housing is ideal for wire-to-board and wire-to-wire connections. It is compatible with 42475 MiniFit BMI Plug Housing and 45750 Mini-Fit Plus HCS Crimp Terminals, ensuring a secure and reliable connection. The housing is polarized to the mating part and features panel mount capability for easy integration into various systems.
MOLEX 15060180 Mini-Fit BMI Receptacle Housing Specifications:
- Overview: Mini-Fit BMI Connectors
- Product Family: Crimp Housings
- Series: 42474
- Application: Power, Wire-to-Board, Wire-to-Wire
- Circuits (maximum): 18
- Color - Resin: Natural
- Flammability: 94V-2
- Gender: Receptacle
- Material - Resin: Nylon
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Polarized to Mating Part: Yes
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 13.0A
- Current max per circuit: 13A
- Material: PA Nylon 6/6
- Net Weight: 6.061/g
- Mates With: 42475 MiniFit BMI Plug Housing, 43879 MiniFit CPI Header, 42404, 42440, 43810, 44068
- Use With: 5556 Mini-Fit Female Crimp Terminals, 45750 Mini-Fit Plus HCS Crimp Terminal
Buy the 15-06-0180 MOLEX Mini-Fit BMI Receptacle Housing | myMectronic
Purchase the MOLEX 15-06-0180 Mini-Fit BMI Receptacle Housing securely and reliably through myMectronic.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 15060180?
You can click on the BUY or RFQ button to purchase 15060180 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 15060180?
You can download the 15060180 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 15060180?
MOLEX
