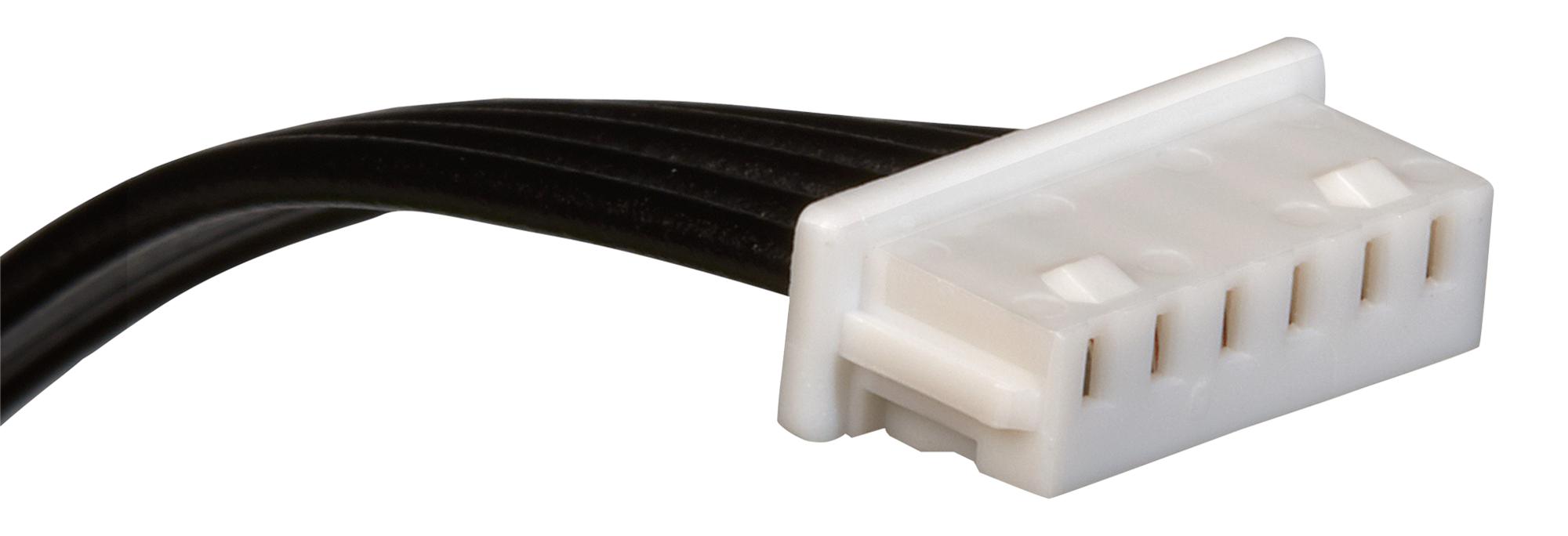

MOLEX 151340601 PicoBlade OTS Cable Assembly
The MOLEX 15134-0601 PicoBlade OTS Cable Assembly provides a pre-terminated solution for connecting PicoBlade connectors. With a length of 100mm and 6 circuits, it's suitable for applications requiring compact and reliable connections. Constructed with phosphor bronze and tin plating, this assembly ensures excellent conductivity and durability. It is RoHS compliant and designed for ease of use in various industrial and consumer electronics applications.
MOLEX 151340601 PicoBlade OTS Cable Assembly Specifications:
- overview: PicoBlade Connector System
- product_family: Cable Assemblies
- assembly_configuration: Dual Ended
- connectors: Connector to Connector PicoBlade-to-PicoBlade
- product_literature_order_no: 987651-6143
- upc: 889056871525
- cable_length: 100.00mm
- circuits_loaded: 6
- color_resin: Natural
- gender: Female-Female
- lock_to_mating_part: Yes
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 1.300/g
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- sales_drawing: 2012341358-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per ED/30/2017
- halogen_free_status: Not Low-Halogen
- mates_with: PicoBlade Header 53261, 53047, 53398, 53048
