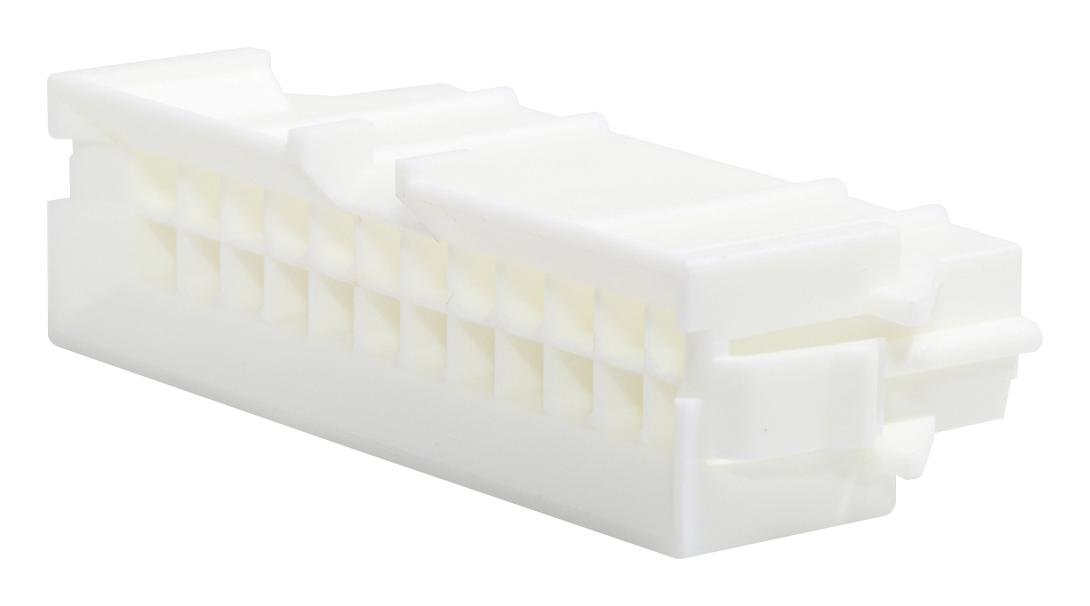

MOLEX 15060246 Mini-Fit BMI Plug Housing
The MOLEX 15-06-0246 Mini-Fit BMI Plug Housing is a robust connector solution designed for a wide range of applications, including power distribution, wire-to-board connections, and wire-to-wire harnesses. Featuring 24 circuits and a 4.20mm pitch, this housing provides a secure and reliable connection. Constructed from nylon resin with a UL 94V-0 flammability rating, it offers excellent durability and safety. The housing is designed to mate with compatible receptacle housings and terminals, ensuring ease of assembly and integration into various systems. It is suitable for applications requiring a maximum current of 13A per circuit when properly mated and terminated.
MOLEX 15060246 Mini-Fit BMI Plug Housing Specifications:
- Circuits (maximum): 24
- Color - Resin: Natural
- Flammability: 94V-0
- Gender: Plug
- Material - Resin: Nylon
- Net Weight: 8.520/g
- Number of Rows: 2
- Packaging Type: Bag
- Panel Mount: Yes
- Pitch - Mating Interface: 4.20mm
- Pitch - Termination Interface: 4.20mm
- Stackable: No
- Temperature Range - Operating: -40° to +105°C
- Current - Maximum per Contact: 13.0A
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Halogen-Free Status: Low-Halogen
- Mates With: 44475, 44516, 42474 Receptacle Housing, 5557d Receptacle Housing, 42385 Receptacle Header
- Use With: 46012 Mini-Fit Plus HCS Crimp Terminal, 5558 Mini-Fit Crimp Terminal
